H&R Street Performance Monotube Suspension Kit (E90 non-M)

Introduction

We at Vorshlag will be the first ones to tell you that the E90 OEM dampers and springs are simply too soft for performance driving. The suspension designers at BMW had to make this high volume chassis with too many compromises and couldn't make the E90 a low-slung corner carving demon with high-end monotube dampers or adjustable camber. Since this car is sold all over the world, the ride height on this chassis is TALL to accommodate every possible weather condition, even deep snow drifts. They also have to keep the price of the dampers and top mounts low, to keep the car affordable - to appeal to the most buyers. So you end up with a very compromised suspension from BMW.

If you take your bone stock E90 to a road course and run an open track day you will quickly notice the chassis flopping around under hard cornering, with more body roll than you thought possible in a modern sports sedan. By day's end the front tires will have shredded their outer shoulders, due to the low static camber settings, body roll, and massive deflection in the rubber upper strut mounts.

The factory suspension is the culprit - even the BMW Performance shocks on some models ends up handling like a Big Hot Mess. We have driven bone stock versions on track and it is the "opposite of fast".

A good percentage of BMW buyers are looking for a lower ride height, firmer spring rates and better damping. If you are reading this, you might be one of those folks. Maybe you want to compete in some autocrosses or HPDE track events? Or you have a favorite canyon road you want to attack without the marshmallow suspension letting the car flop around? In order to handle well for performance driving, you need to lower the center of gravity (cg), use better dampers (monotubes, not twin tubes), and add negative camber up front (adjustable camber plates). If this sounds like what you need, Vorshlag has the answer.

The H&R Street Performance kit is a ready-to-install suspension for a multipurpose S550 Mustang. The shortened H&R inverted monotube struts and rear shocks are paired with a set of springs much stiffer than most lowering springs. This kit offers ride height adjustment, on the strut in the front and at the stock spring location in the rear. They will come assembled, ready to install if ordered with the optional Vorshlag spherical adjustable camber/caster plates. Having this system pre-assembled by Vorshlag means it does not require a spring compressor to install.

Key Features

• Monotube front struts that utilize 36mm dia. pistons and 40mm inverted shafts that maximize deflection resistance under hard cornering loads
• Front struts are shorter than the OEM length, for more bump travel at the lower ride height (from the matched lowering springs)
• Monotube rear shocks that utilize new OEM-style rear upper and lower shock mounts
• Rear shocks are shorter than the OEM length.
• Nitrogen charged for exceptional fluid foaming resistance on track
• Valved for a comfortable street ride with the matched lowering springs, with improved track performance, lower cg, and (with camber plates) adjustable front alignment specs.
• No valving adjustment on the dampers - less to fiddle with!

• This system fits all 2006-2013 non-M E90 models
• Four corner ride height adjustment, to get the stance where you want and also to set corner balance
• Great price for a complete damper/spring/camber plate suspension kit

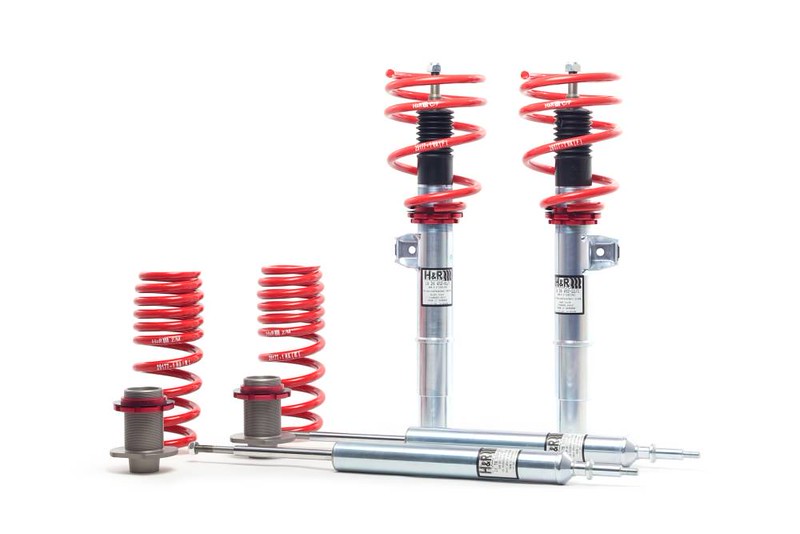

Standard Parts Included:

• 2 Front H&R inverted monotube struts, inverted shaft, height adjustable
• 2 Rear H&R monotube shocks
• 2 Rear ride height adjusters
• Front and rear dual-rate springs
• Pair of spring perch adjuster wrenches
• Bottle of Boeshield T-9 lube for the threads

CAMBER PLATES : Turn the H&R Street Performance kit into a StreetPro kit by selecting the camber plates option. These optional spherical strut top mounts are the legendary Vorshlag adjustable camber-caster plates made for the E90 chassis. These include the proper Vorshlag upper spring perch to fit with the included springs and are pre-assembled onto the front struts with the springs in place. With the Vorshlag plates, you can quickly adjust front camber track side with a jack and hand tools. Caster can be adjusted while the car is being aligned, in three different positions (stock setting and two additional positive caster settings). Our plates are built using over-sized 19mm ID spherical bearings, designed to withstand the rigors of street and track abuse. All components are powder coated, plated or anodized for maximum corrosion resistance and long life. Please see the Vorshlag E90 camber plate product entry on this website for more information about the Vorshlag camber plates and perches. This Street Performance kit comes with the proper selection of components to allow the Vorshlag camber plates to fit the strut and spring perfectly - and it's even pre-installed to the strut. It doesn't get any easier than this.
