Easily adjust camber trackside with Vorshlag camber/caster plates. Oversized spherical bearings are designed to withstand the rigors of street and track abuse. All components are plated for maximum corrosion resistance and long life. Featuring CNC construction for the bearing holder and main plate, including engraved markings for vehicle orientation and hash marks for adjustment.

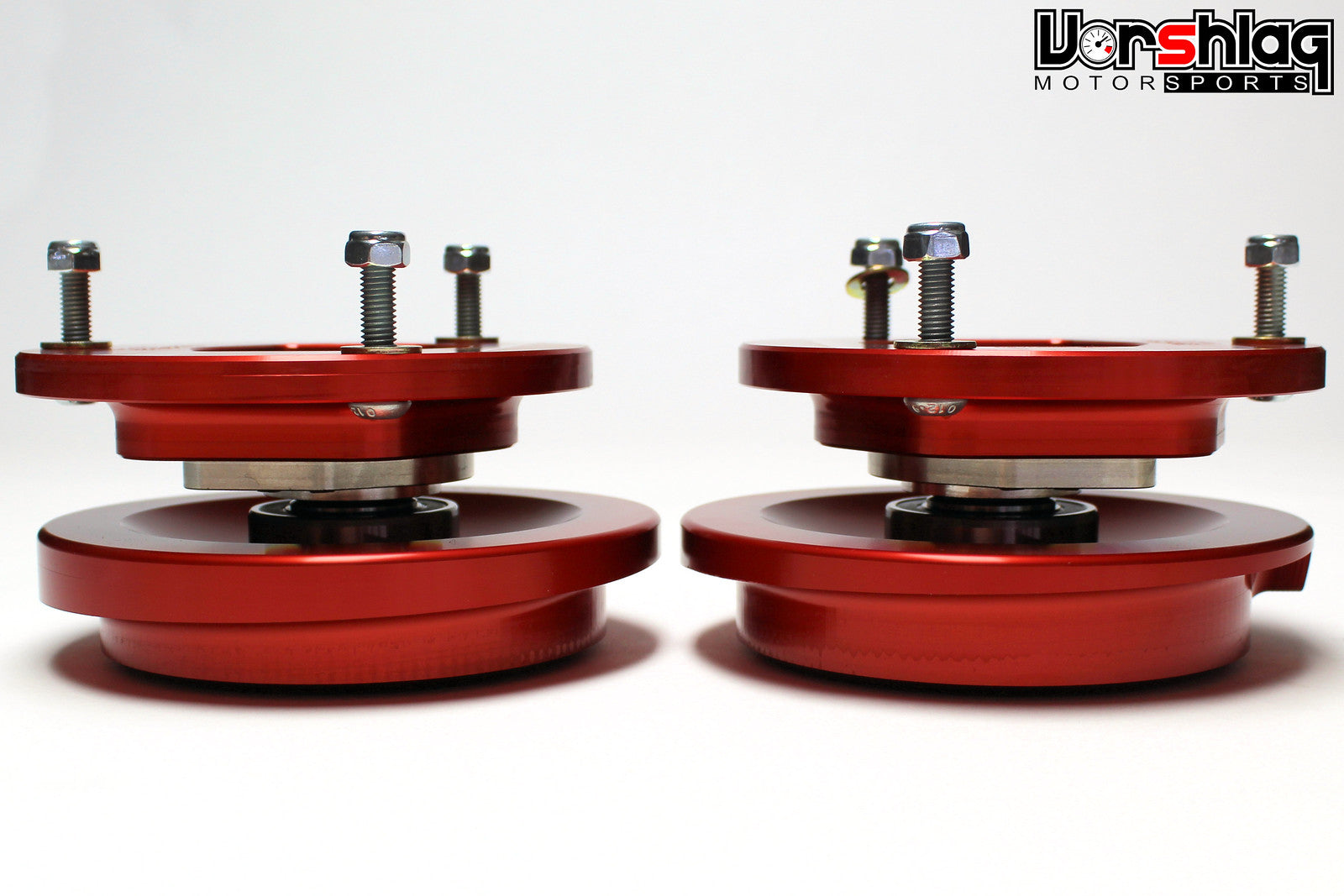

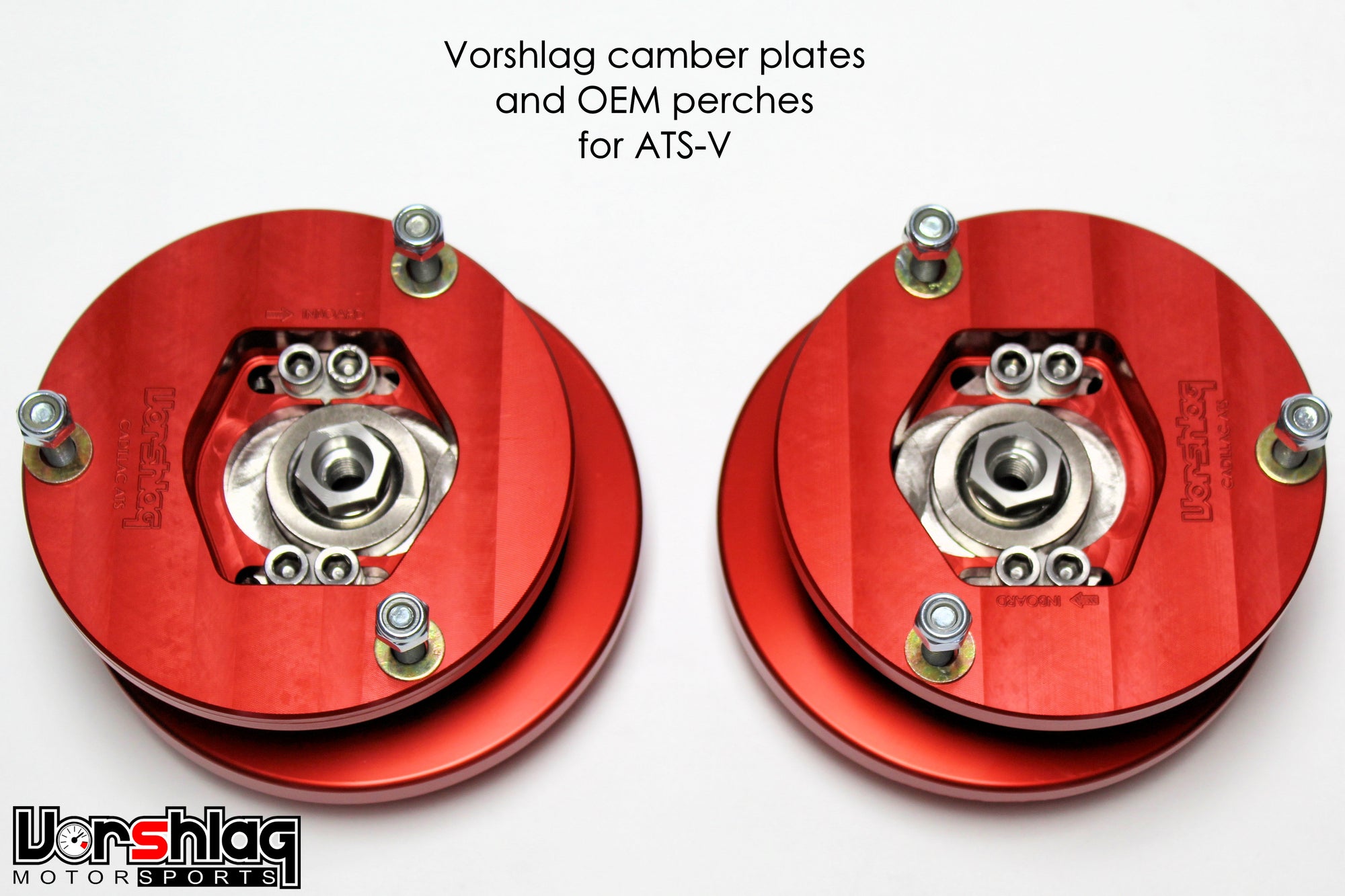

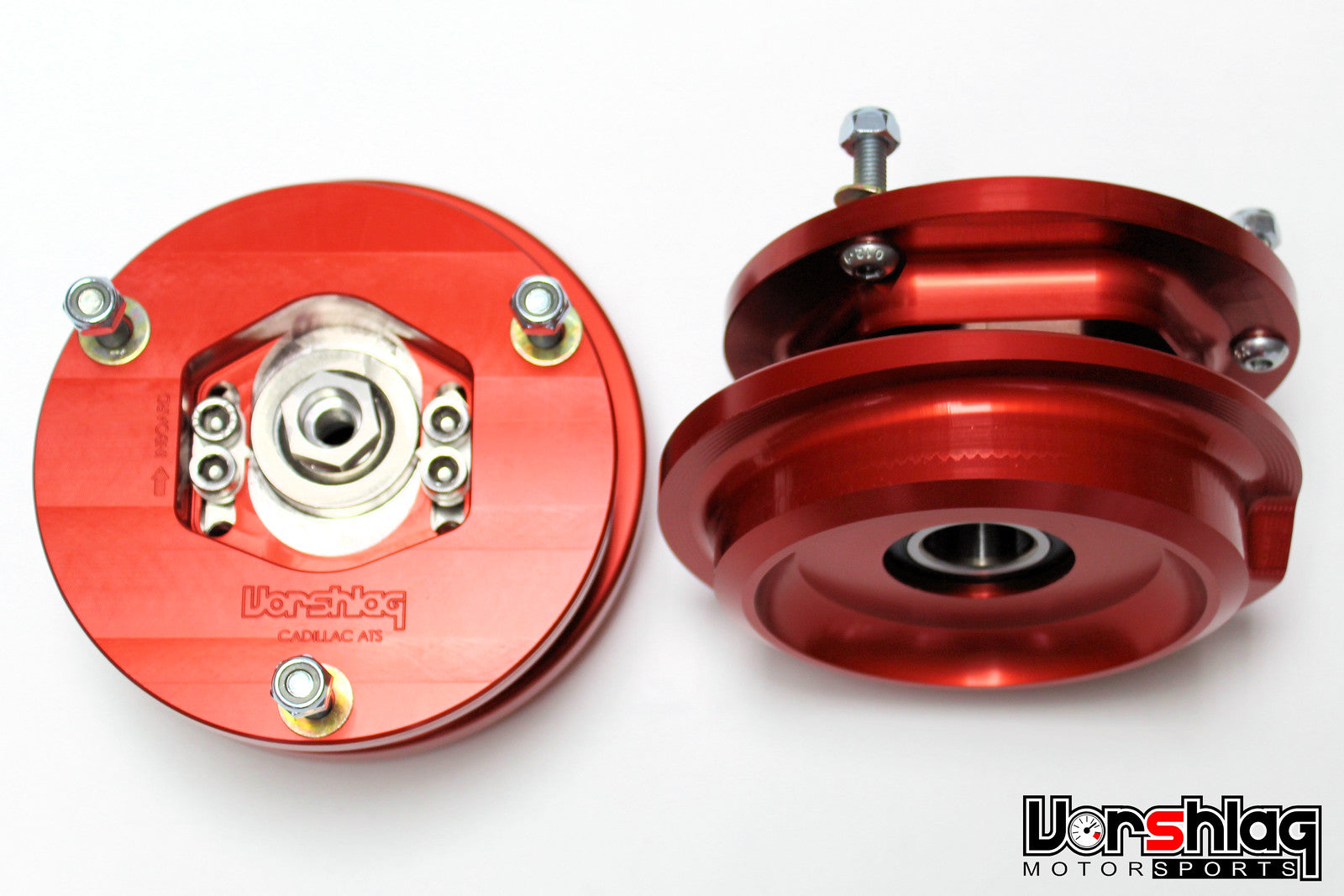

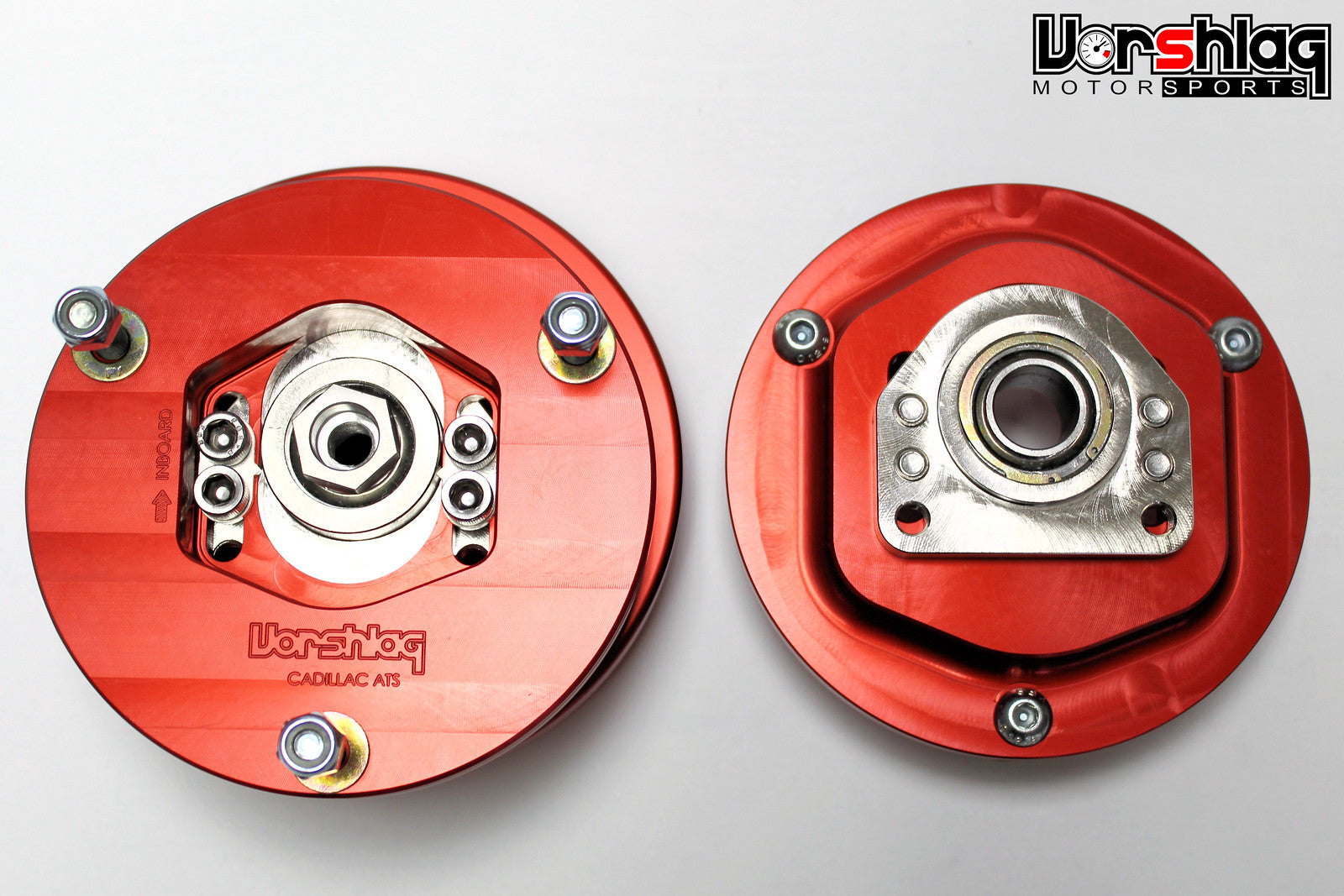

This product entry is for Vorshlag camber-caster plates to fit the 2013-2019 Cadillac ATS and ATS-V models. They will also fit the 2014-2019 3rd Gen CTS models. This camber plate can be used with either OEM Style springs or Coilover springs and virtually any strut type. Please choose the appropriate spring and strut from the option drop-downs below.

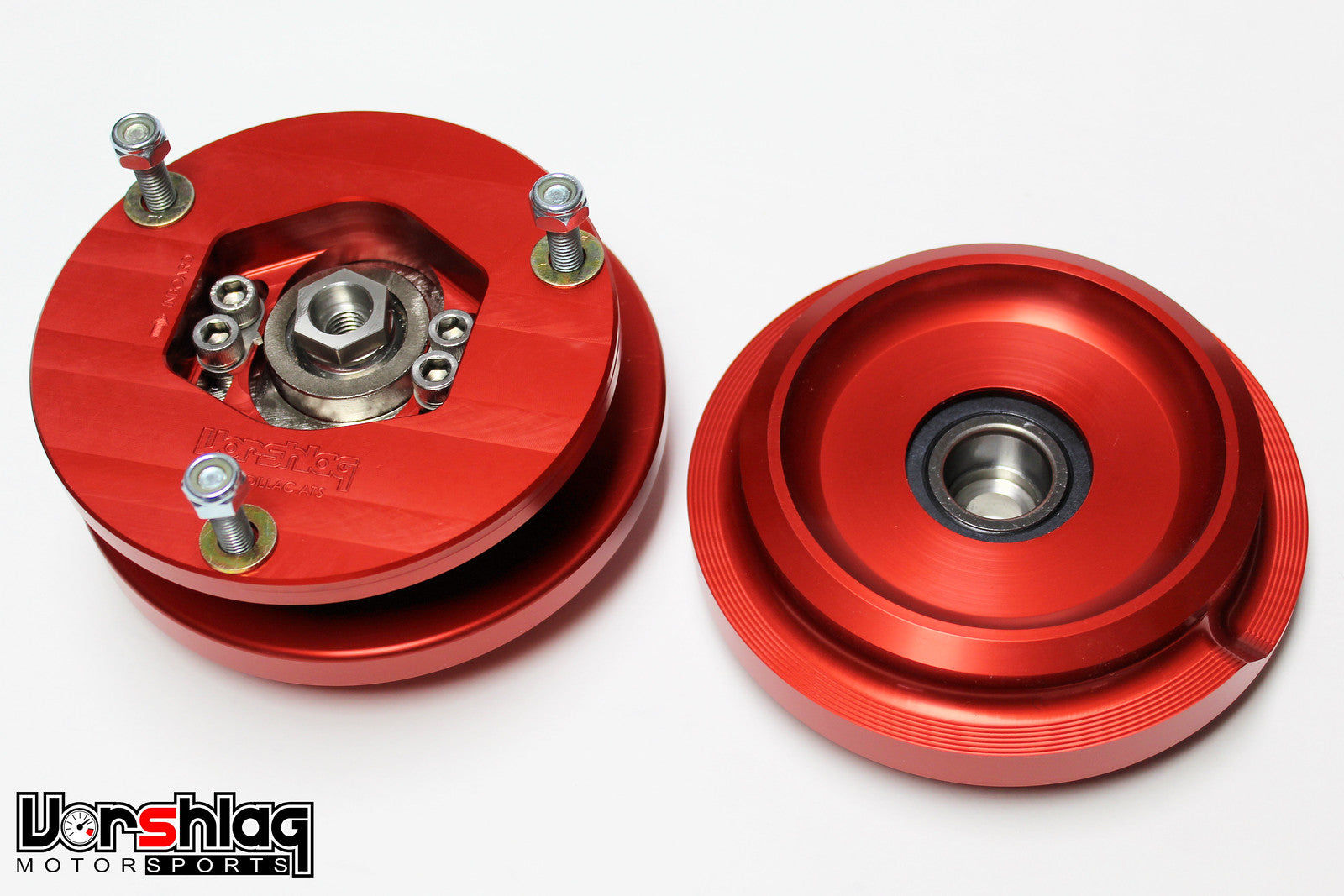

In order to properly use Vorshlag camber plates, you must choose the option below to include Vorshlag upper spring perches that match your strut brand and spring type. Vorshlag camber/caster plates are designed to be compatible with 2.5”, 2.25" and 60mm “coilover” style springs, OEM (stock) style springs and all strut types. We make numerous variations of this plate and accompanying perches to work with your set-up. The Vorshlag upper perches allow us to add a sealed radial bearing that isolates the spherical bearing in the camber plate from radial turning loads of of the strut shaft during steering inputs. This is part of why our plates last the lifetime of the car!

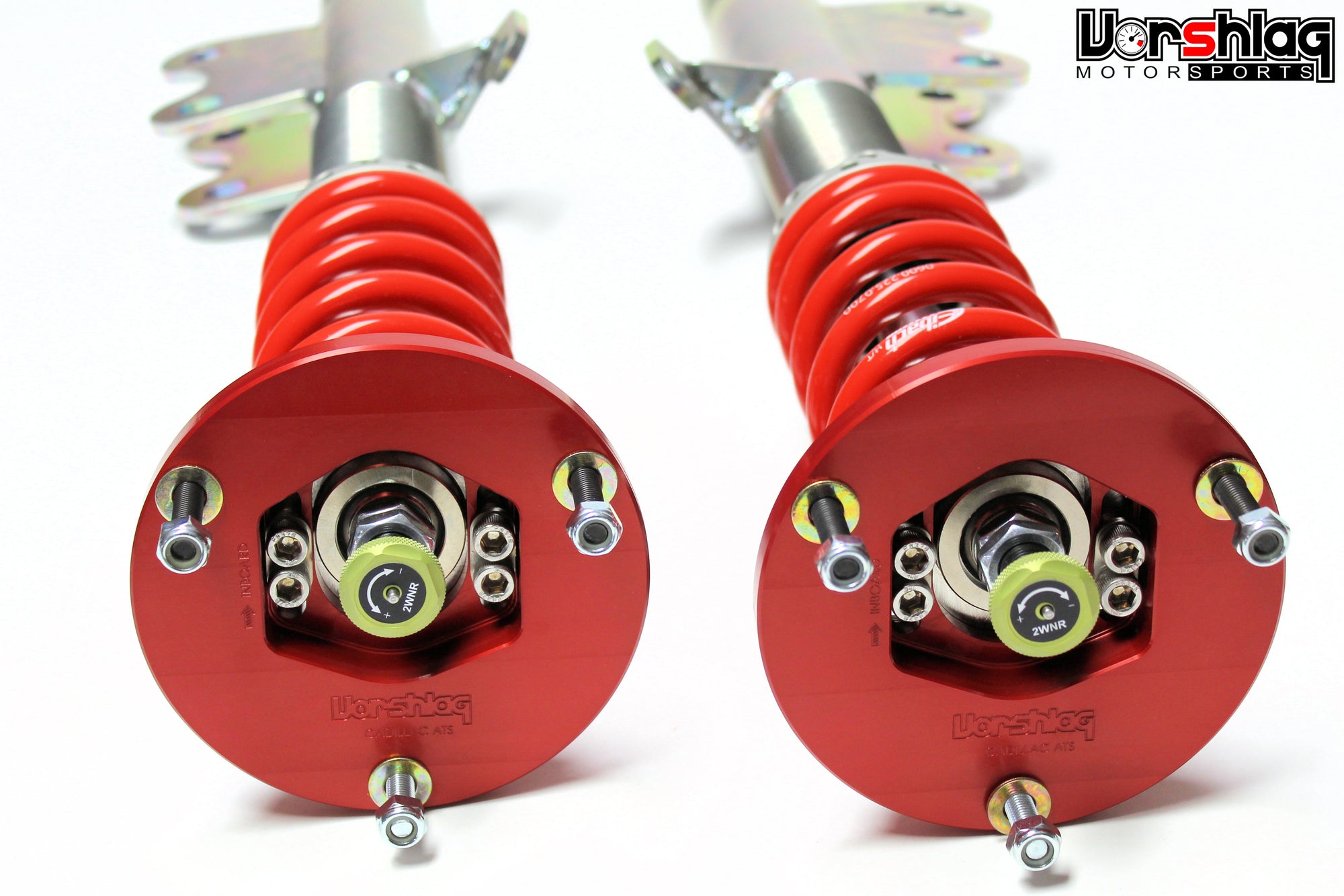

- Compatible with 2.5", 2.25" and 60 mm coilover springs, factory springs, OEM Style Lowering springs and all struts.
- No need to change camber plates when switching from regular springs to coilovers - some companies sell you two totally different camber plates for coilover springs and factory style springs.
- Installs with basic hand tools, no chassis modifications required.
- Plates are designed specifically for the Cadillac ATS.
- Camber is easily adjustable at the track from the engine compartment with simple (metric) hand tools. No need to reach inside the wheel well with a wrench to tighten.
- The spherical bearing used in the Vorshlag camber plate is the largest used in any Cadillac camber plate on the market. The result is much better durability and wear characteristics than the undersized bearings used in our competitors' plates.
- Designed for maximum suspension travel (bump travel). More than an inch more strut travel than some of our competitors' designs.
- Alloy steel bearing holder - Tough as a German Tank!
- Aluminum alloy main plate for lighter weight, engraved and fully anodized
- All components plated or anodized for maximum corrosion resistance and long life.
- Vorshlag Upper spring perches required. Coilover perches included in the basic price, but OEM style perches are extra (see "Spring Perch" drop down option menu, below).
- Maximum negative camber setting depends on caster setting, ride height, and is ultimately limited by the strut tower opening on some chassis. The ATS strut tower hole is more restrictive than some cars. Expect to get -2 to -3.5 max camber, depending on ride height.
Spring Perches: Please pick the spring perch diameter that works with the springs you have. Coilover springs typically come in one of three inner diameters: 2.25", 60mm and 2.5".
Strut Style: Please pick your strut brand and sizes from the drop down below. This helps us build the spring perches to fit your struts with a tight tolerance and no slop - for quiet, reliable use. If you do not know what struts you have please have a reputable shop inspect them, as most mechanics can spot the differences with a quick look. There are also new struts and updates to existing models that come out from time to time. If your strut is not listed, please pick the "Other" option and let us know what brand and model struts you have in the order notes.
Vorshlag branded products are assembled to order and most are tailored to match your specific application. We CNC machine parts in house, use outside vendors for platings/coatings and laser cut parts, and the bearings and hardware comes from various sources. Due to the myriad variety of components required for different applications, it is possible that delays can occur in the fulfillment of your order. Please contact us before placing your order if you have a time constraint.
