BRZ/FRS/GT86 Suspension

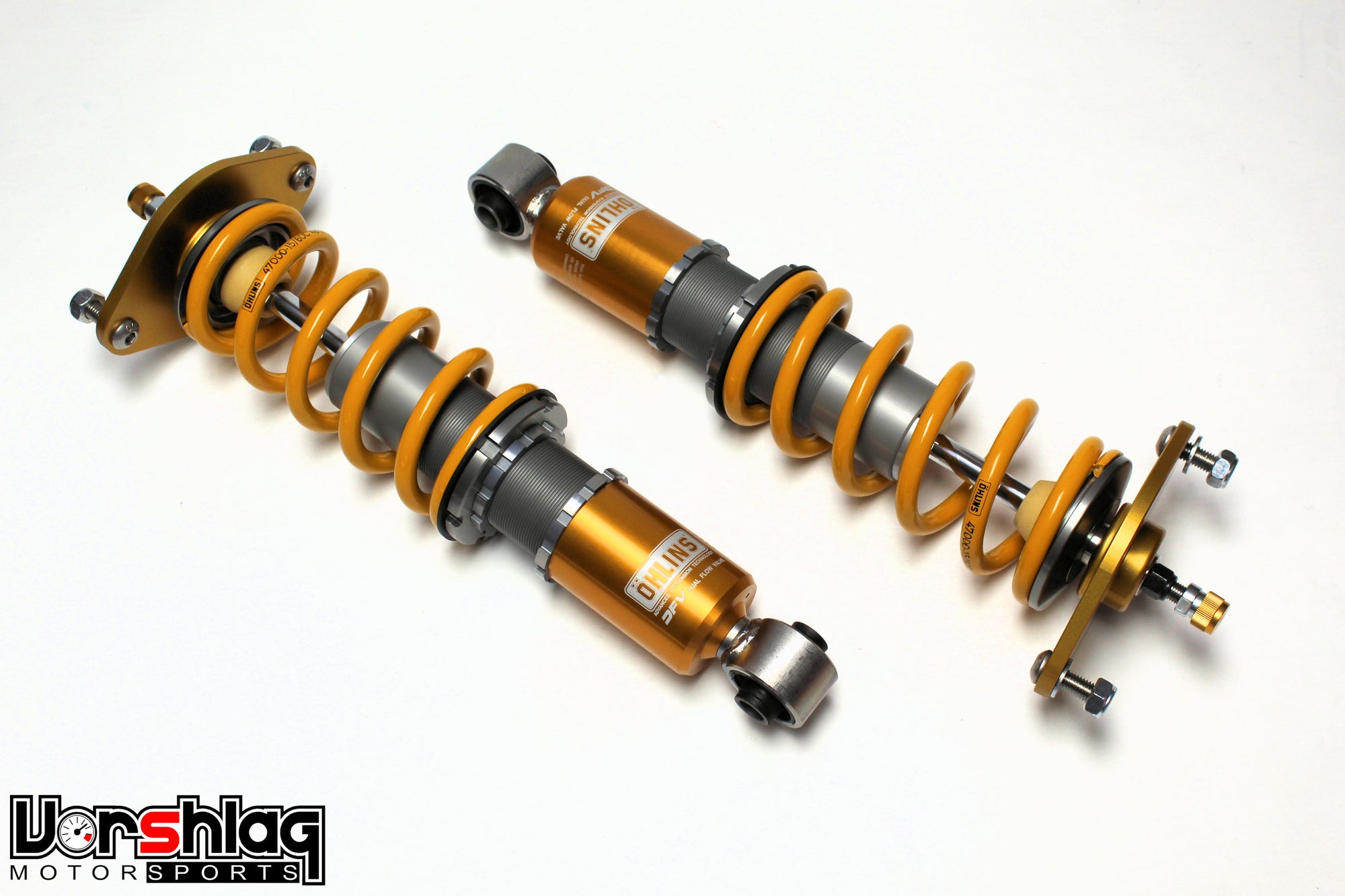

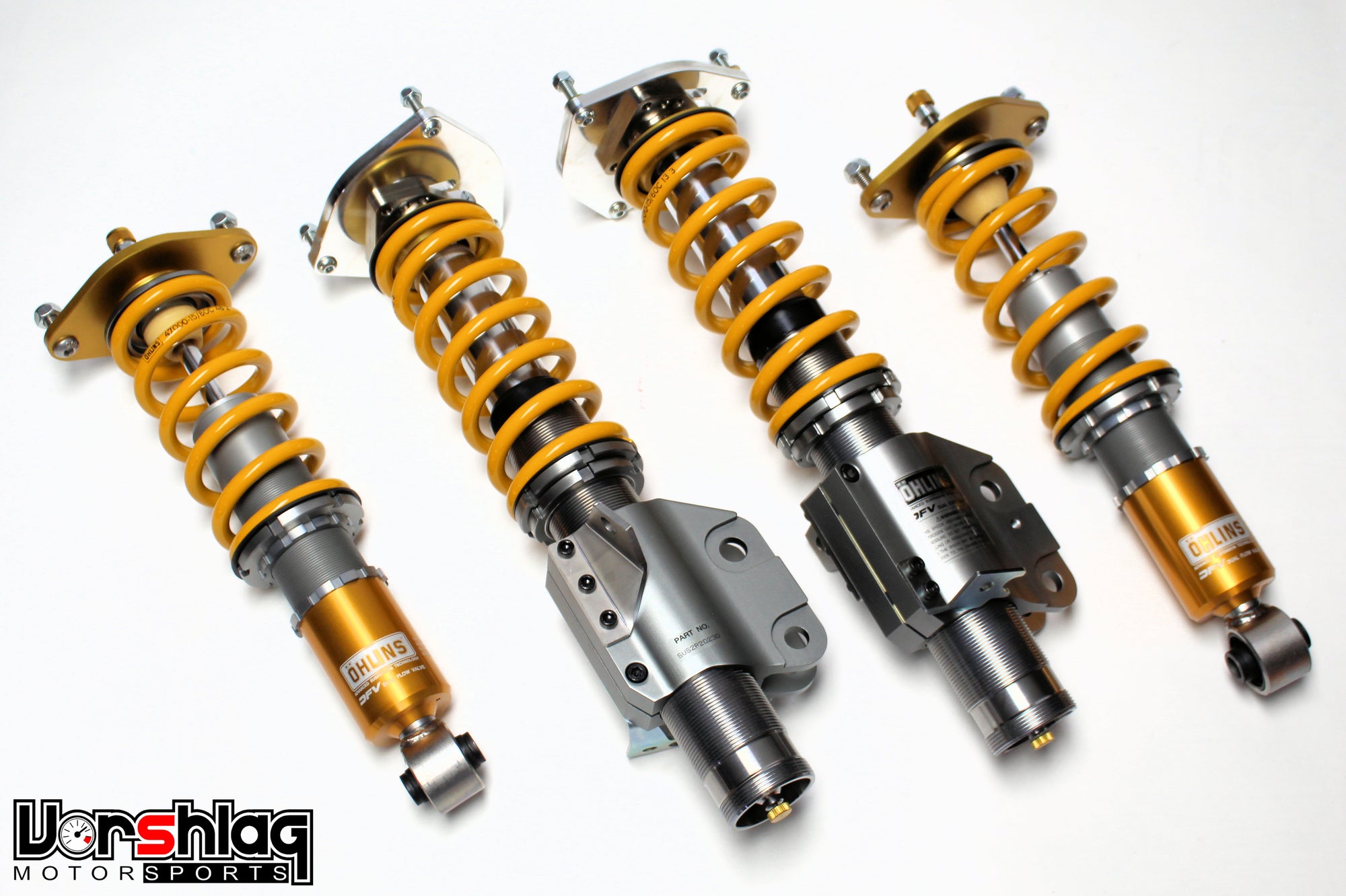

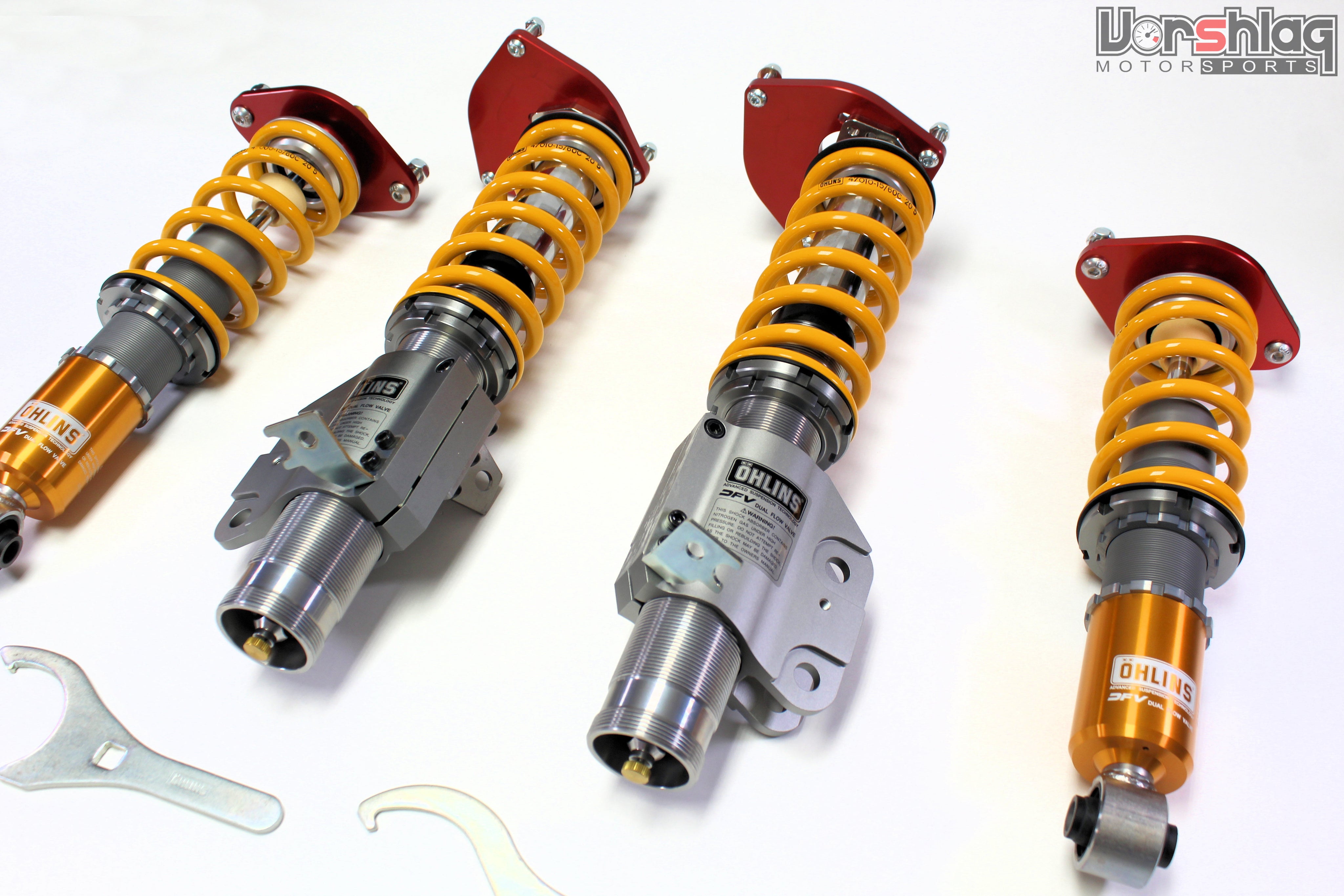

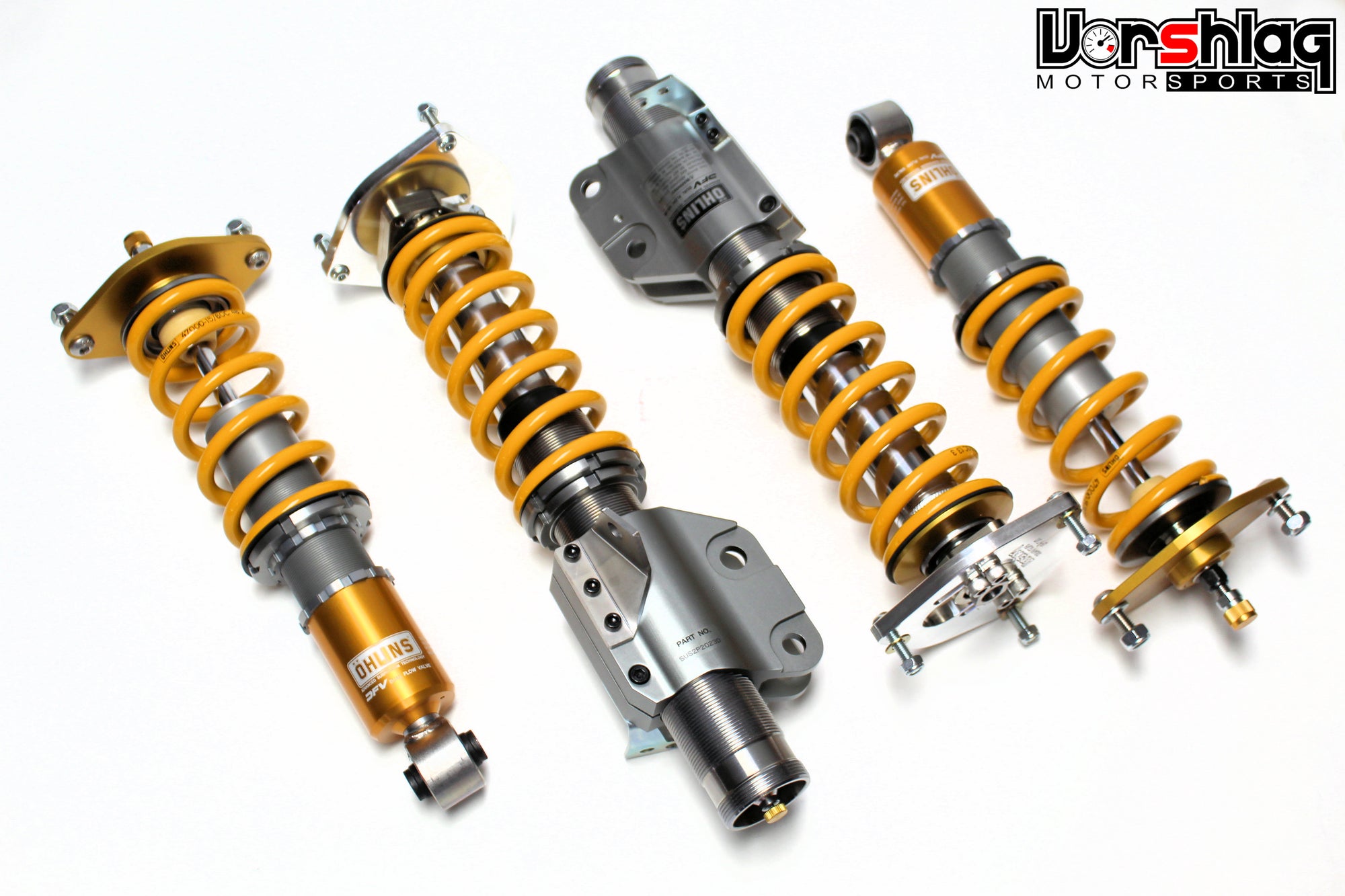

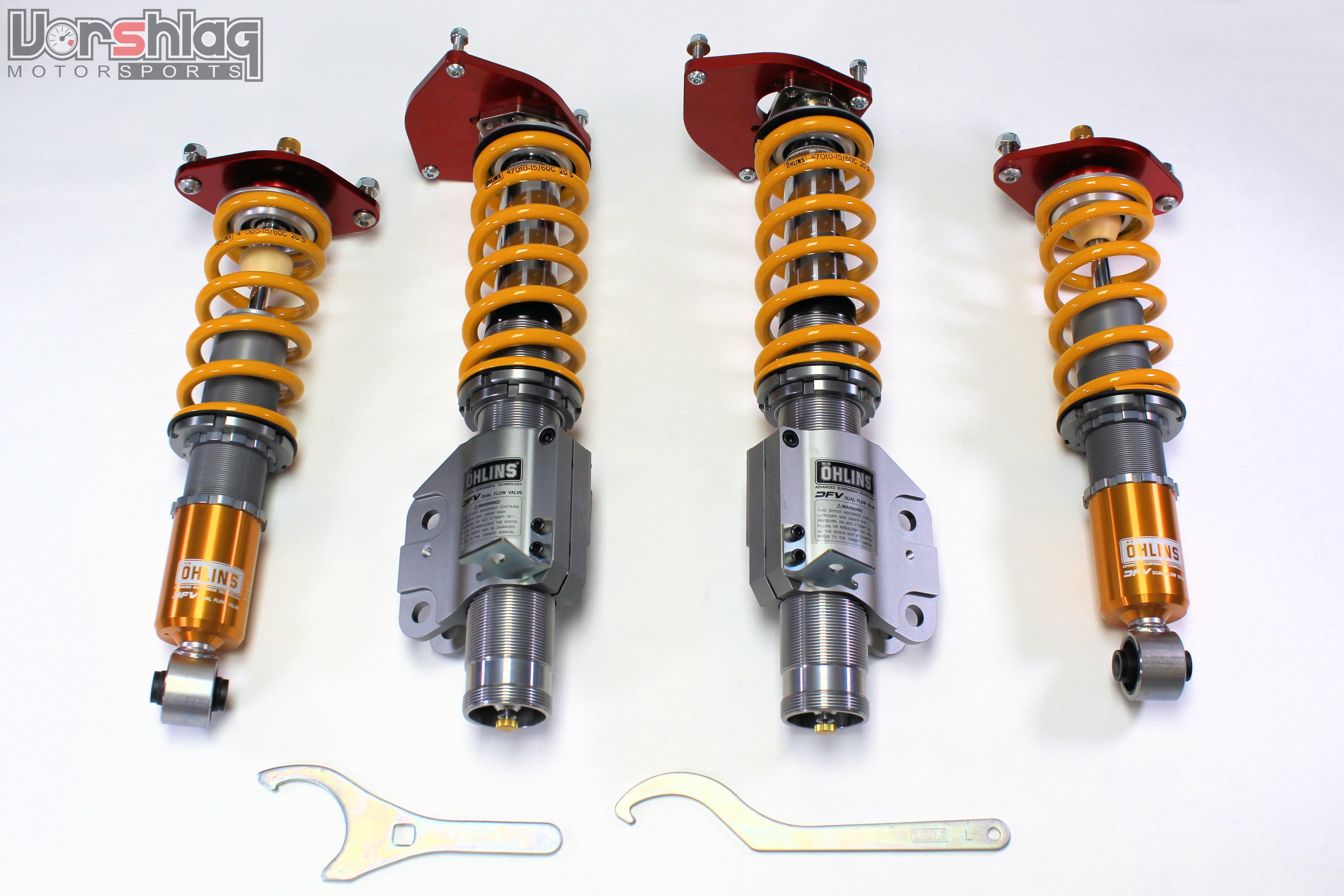

Ohlins Road & Track for BRZ / FRS / GT86 [SUS MP21S1-SUS MP21S2]


Introduction

Vorshlag Motorsports is proud to offer the full line of Ohlins Road & Track Coilovers.  The Road & Track series of monotube dampers has the quality, technology, and performance we look for here at Vorshlag, we won't just sell any damper! Ohlins has been involved in racing for over 30 years and that knowledge and commitment to providing high-end damper solutions can be found in each of their products.

The Ohlins Road & Track kit is designed to offer a very high level of performance for both street driven vehicles, as well as offer the adjustability needed for track cars. These shocks are manually adjustable monotubes, with up to 20 individual settings to adjust rebound from comfort to competition. The threaded body allows accurate adjustability of the front and rear progressive springs to achieve the vehicle ride height center of gravity and level of performance handling desired. Ohlins Road & Track's can also be revalved, rebuilt, and can be supplied with various spring rates to meet your demands! Ohlins puts every one of their products through vast corrosion test according to ISO 9227. The end result is a 2-Year limited warranty on all of their products - worldwide.

We highly suggest adding Vorshlag camber plates for any track use, which gives more front alignment adjustment and saves tire wear on track.

Key Features

  • Lower the car about 20mm front and 15mm rear
  • DFV (Dual Flow Valve)
  • Monotube shocks and struts
  • Single Bleed Adjuster
  • Threaded Body for Accurate Adjustability
  • Front and Rear Springs (Front 50N/mm / Rear 50N/mm)
  • Corrosion Salt Spray Tested (ISO 9227)
  • Use with OEM Top Mounts


Choose the appropriate options and model alterations from the drop down menus below. These options will affect the final price as shown for each option.

CAR MODEL YEAR : Choose first or second generation model based on the year. The first gen 86 (2013-21) sets come with Front 50N/mm / Rear 50N/mm springs. The second gen (2022-up) sets come with Front 60N/mm / Rear 60N/mm springs (these are two different Ohlins kits).

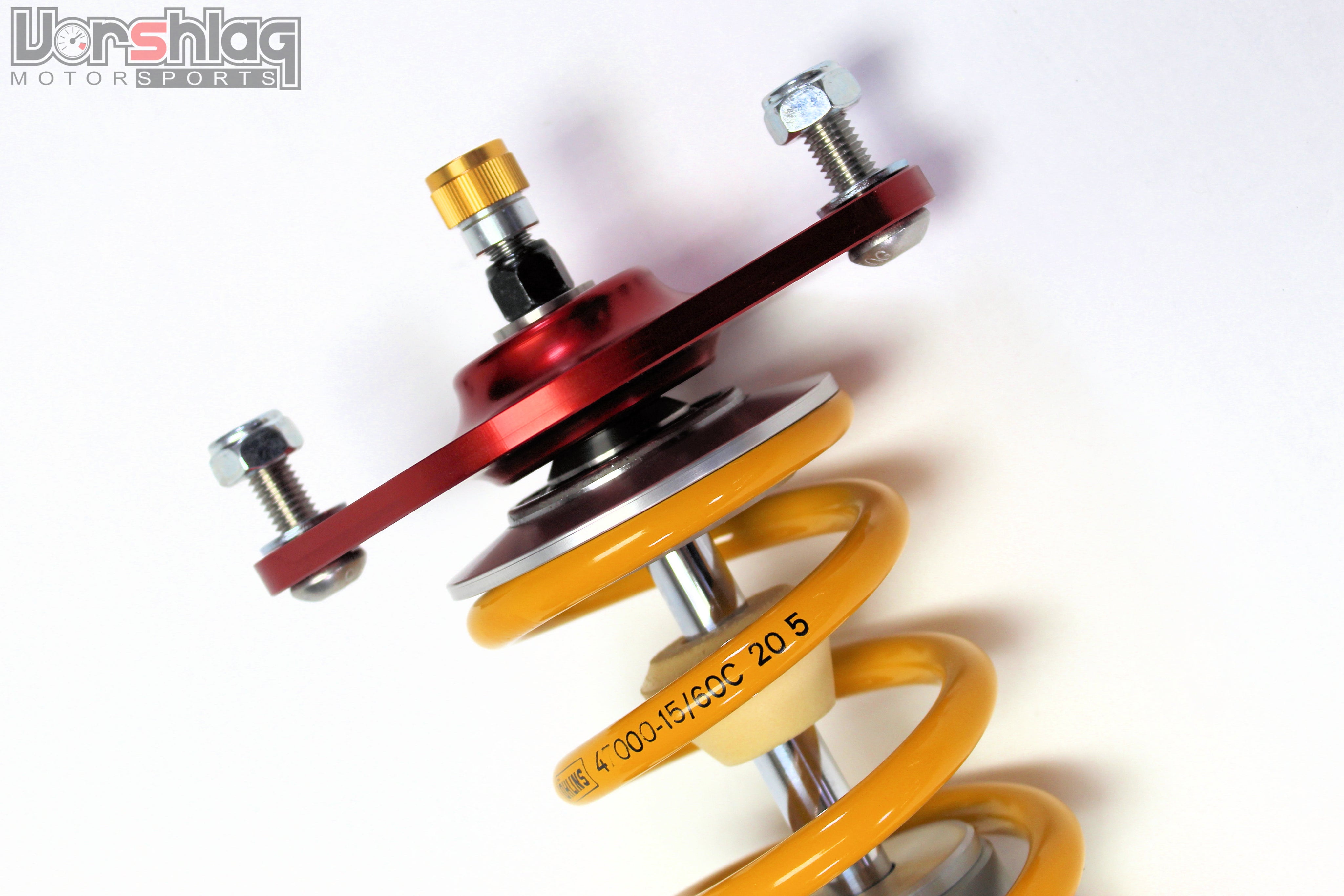

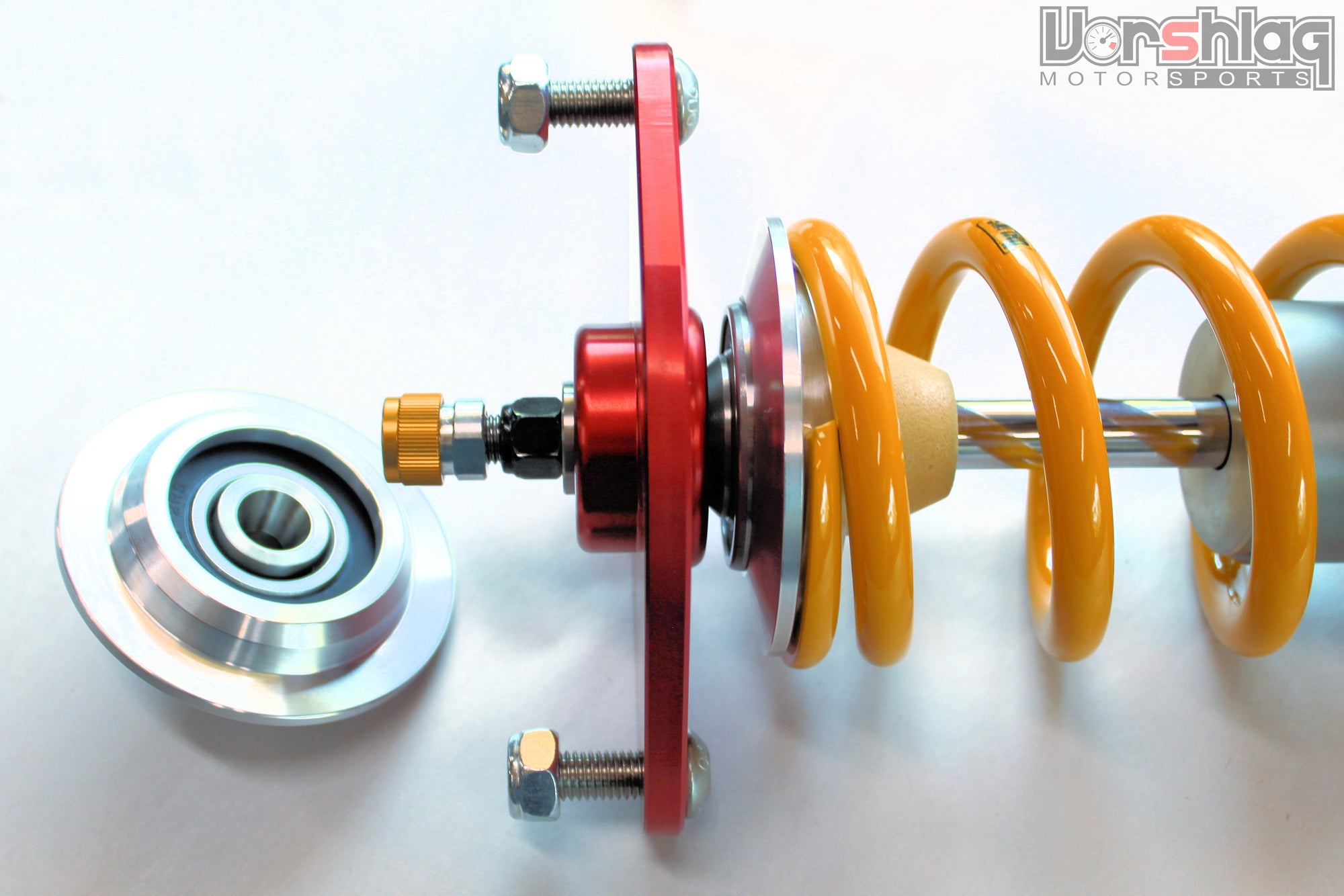

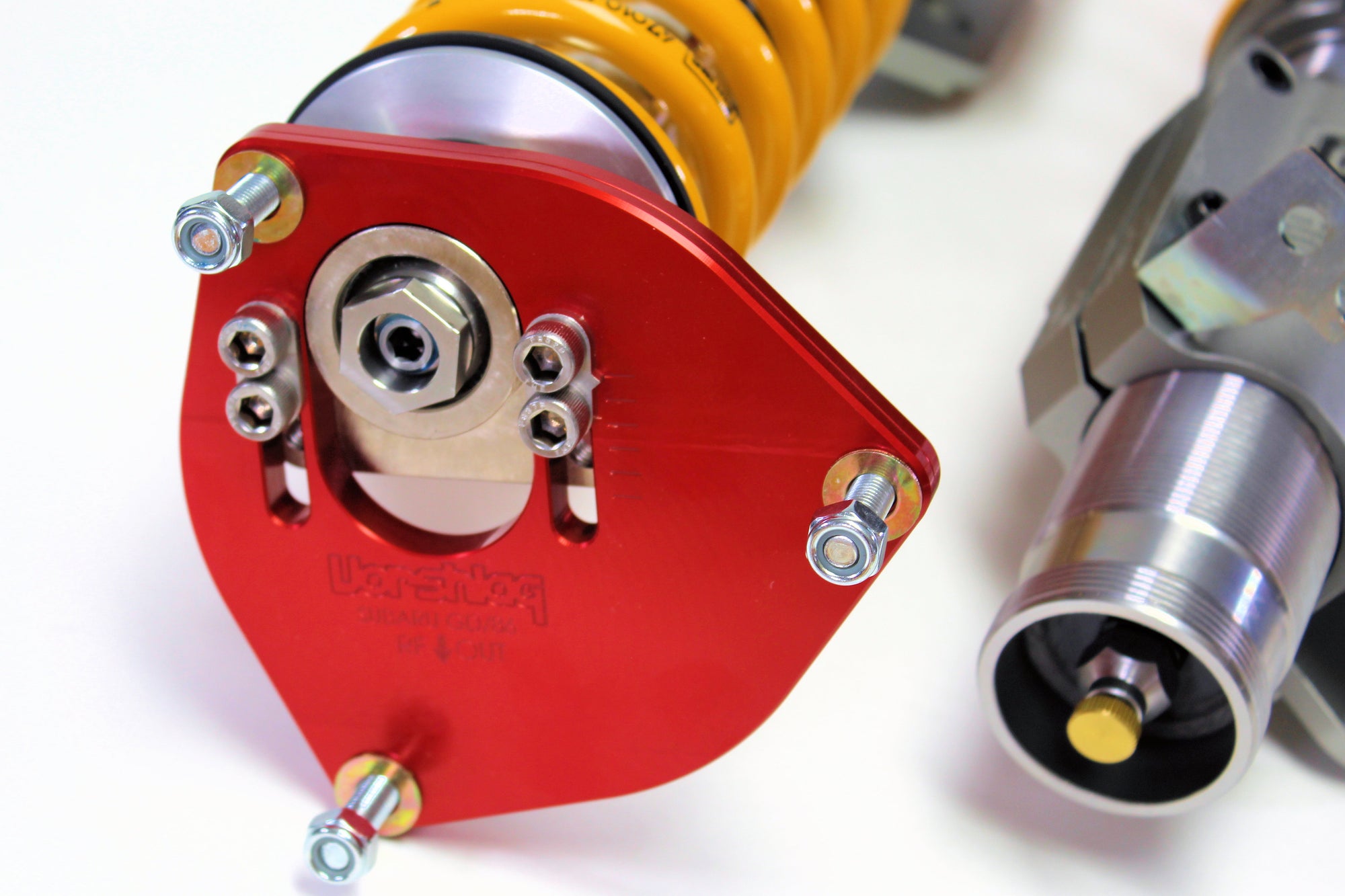

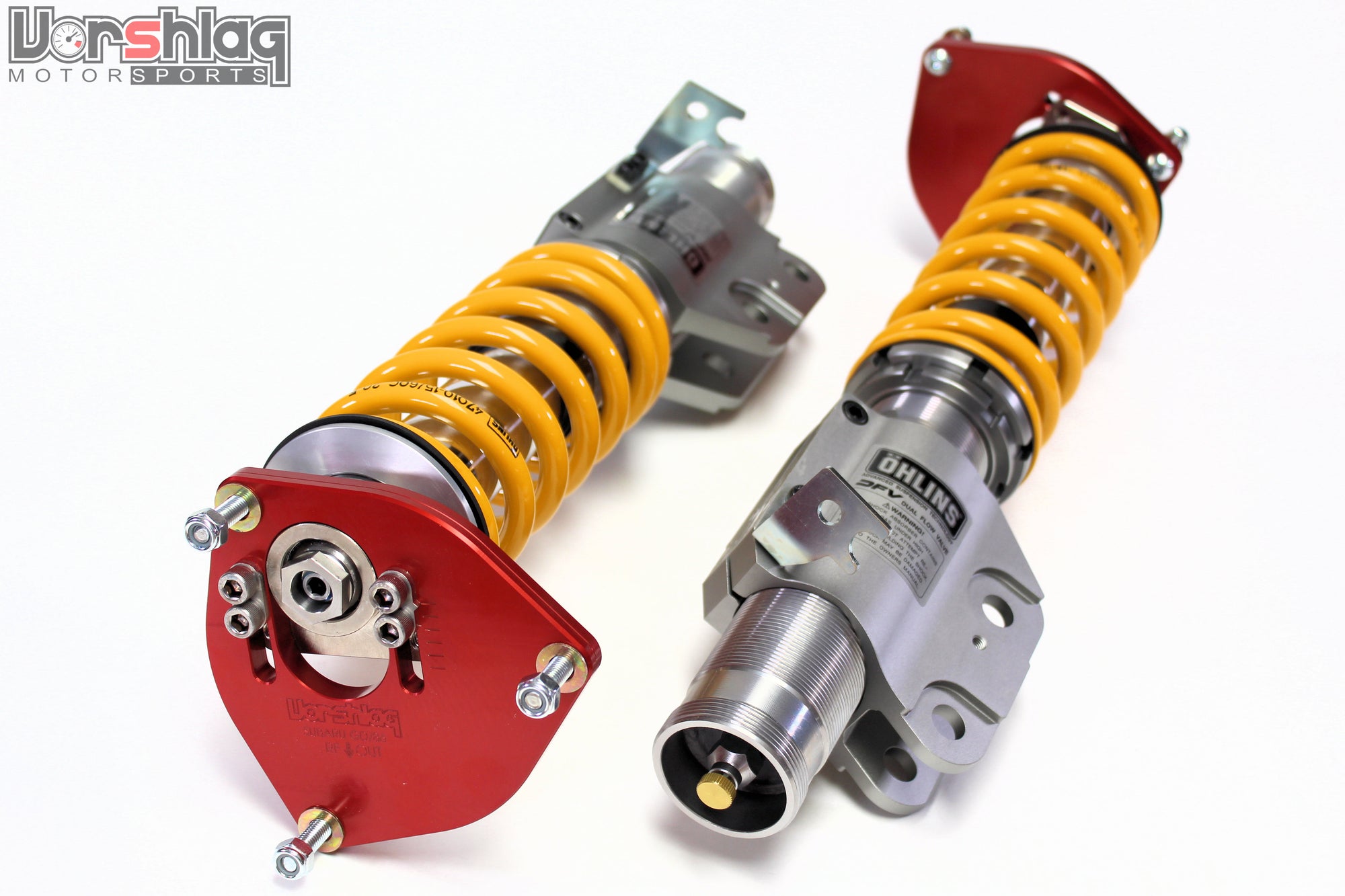

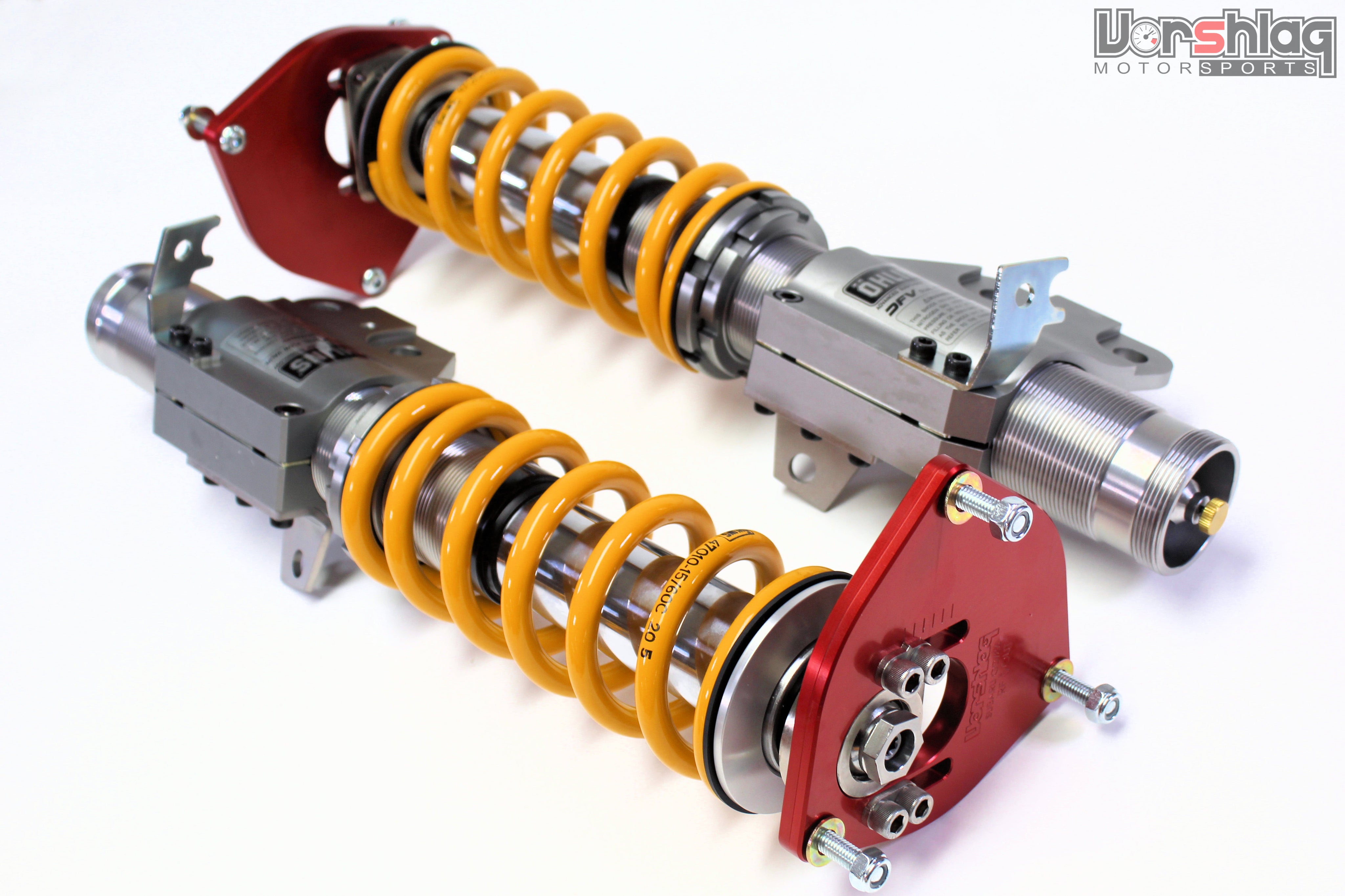

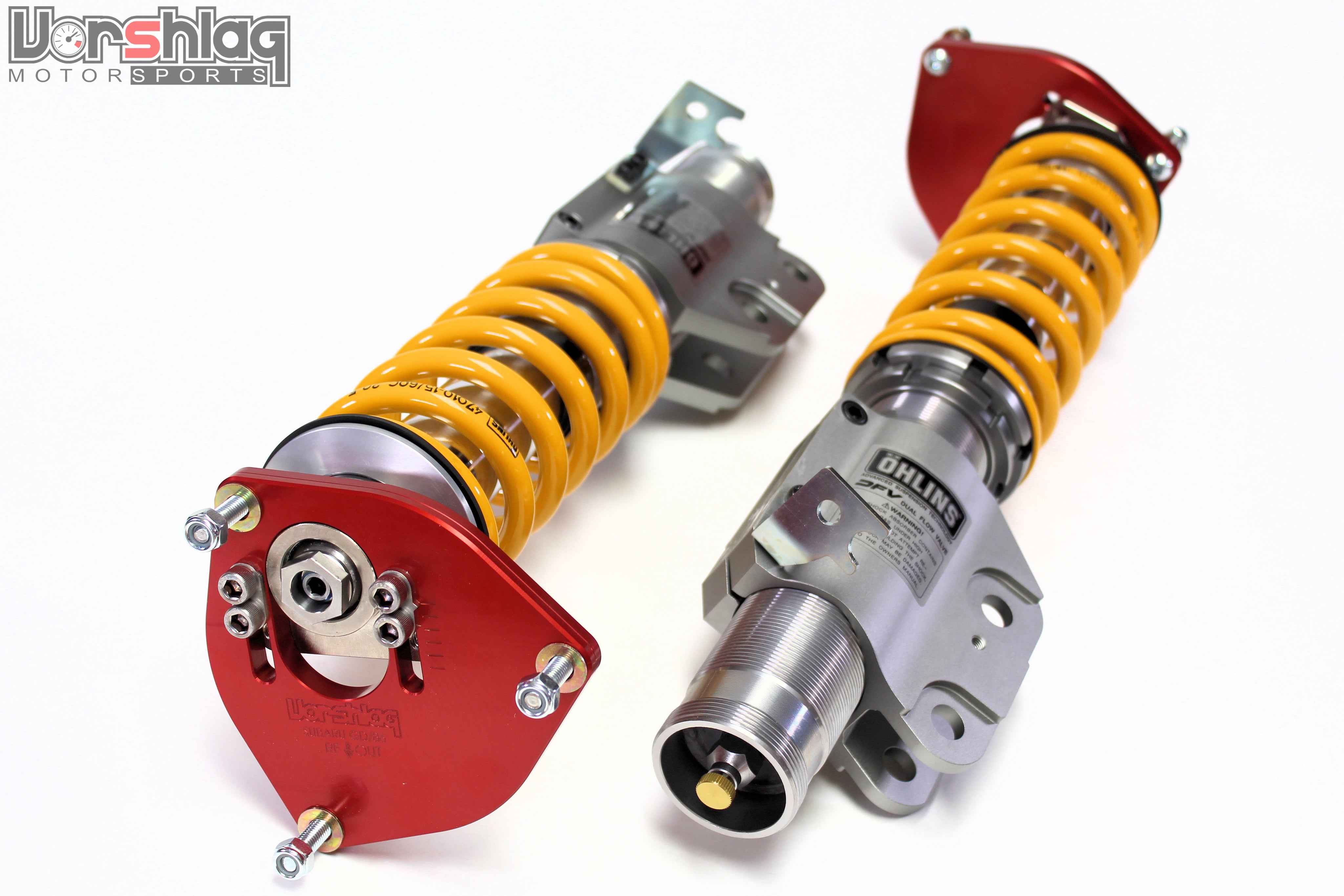

CAMBER PLATES : We highly recommend Vorshlag camber plates be used with Ohlins strut kits, but the shocks can be used with the OEM upper strut mount for racers on an extreme budget and/or where class rules do not allow an upper camber plate (such as SCCA Stock Class). Easily adjust camber track side with Vorshlag camber/caster plates. Over-sized spherical bearings are designed to withstand the rigors of street and track abuse. All components are plated for maximum corrosion resistance and long life. Please see the product entries on this website for more information about the Vorshlag camber plates and perches. Ordering this option includes the associated Vorshlag upper spring perches made to work with these plates.

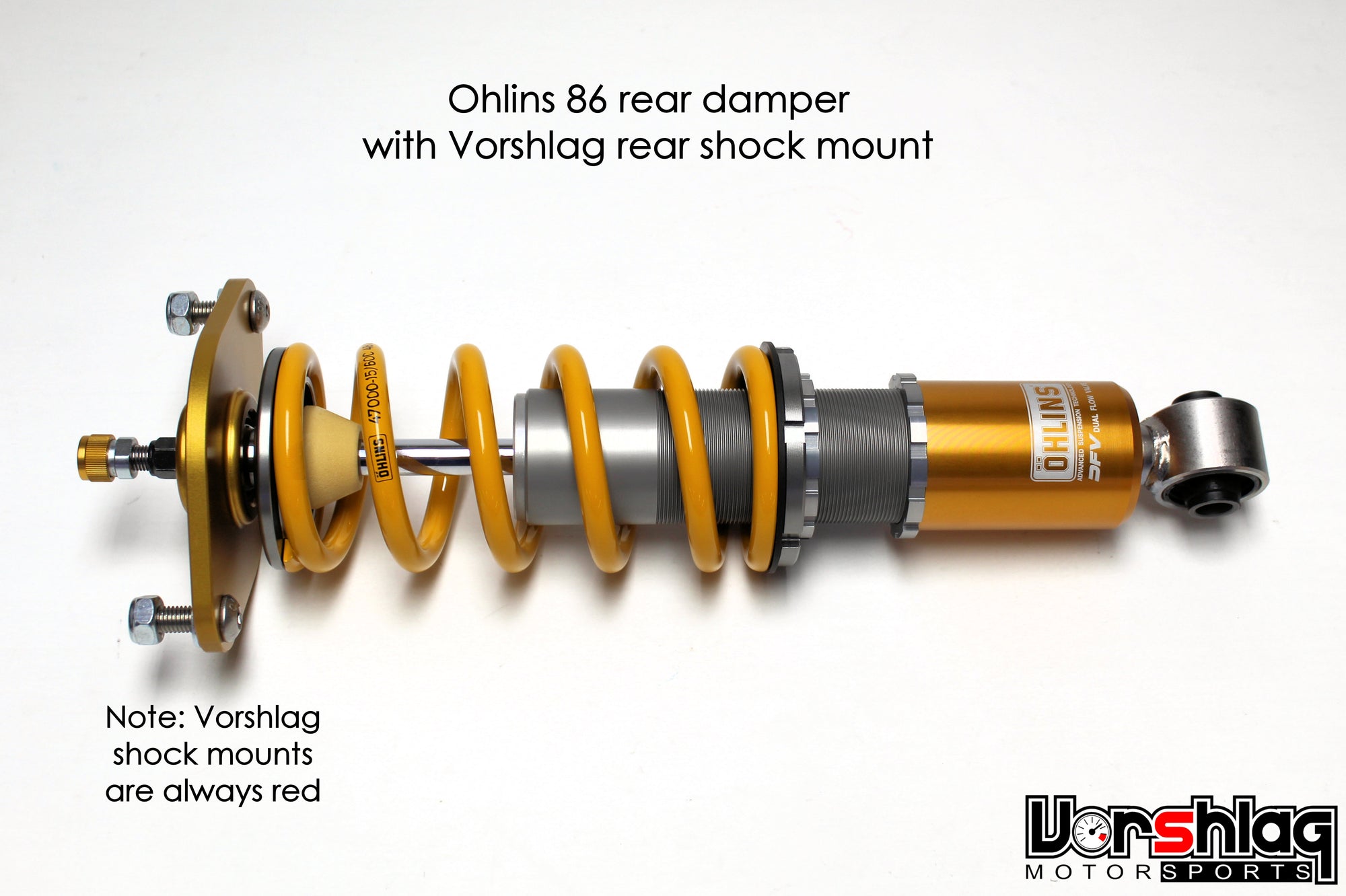

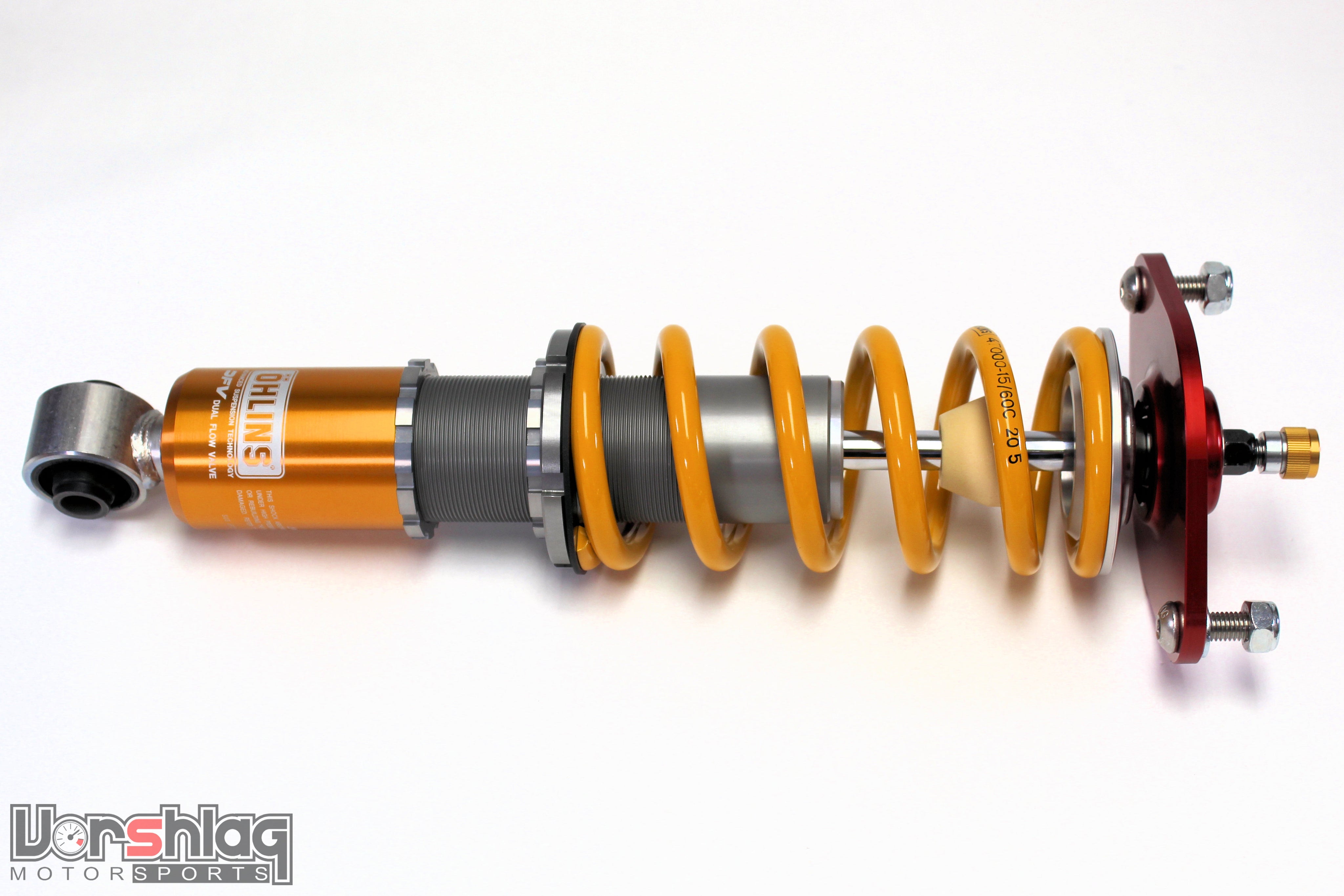

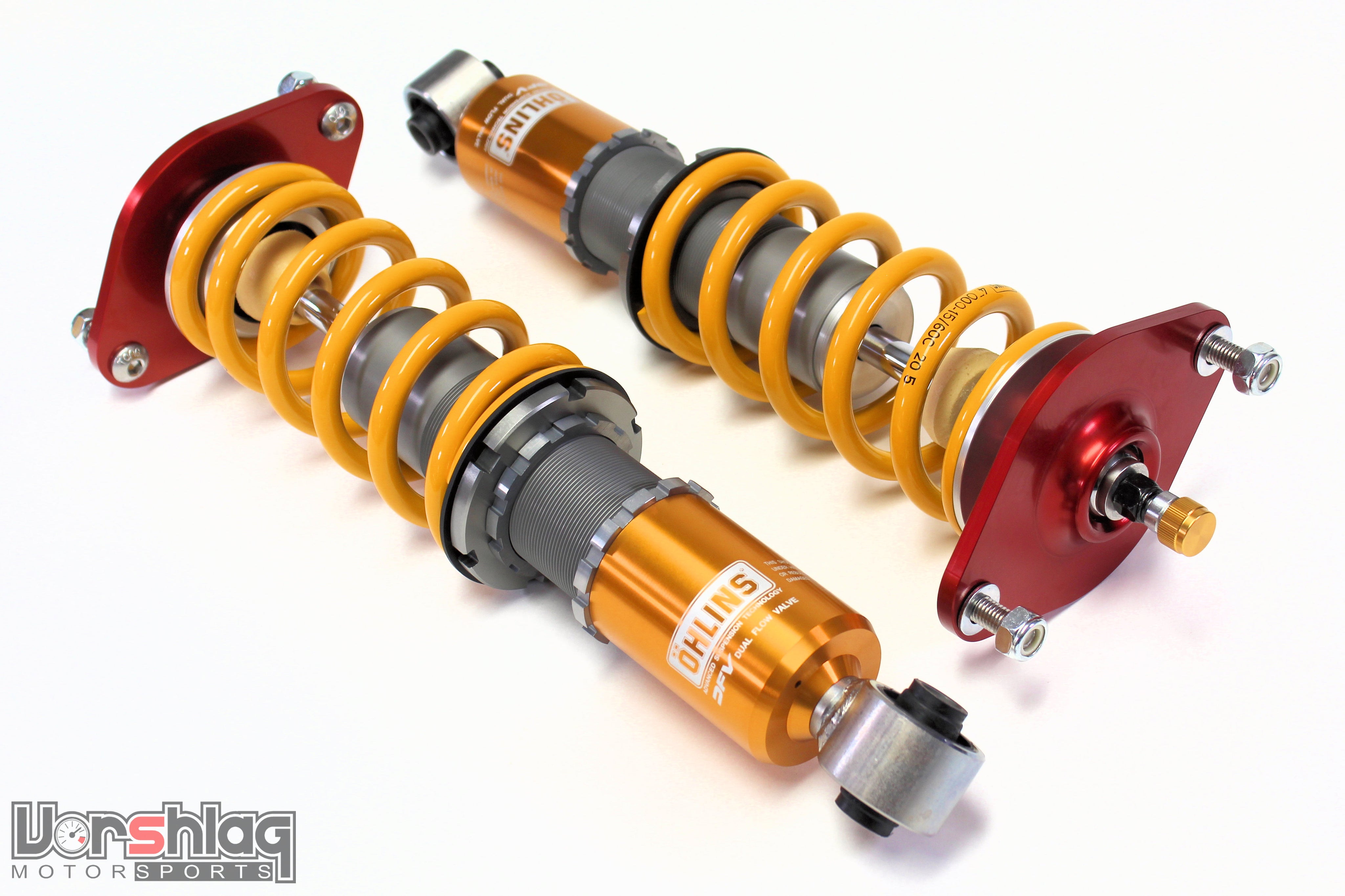

REAR SHOCK MOUNTS : Optional Rear Shock Mounts include Vorshlag Spherical design built with the same oversized spherical bearing as our camber plates.  You can also can choose to use your OEM rubber shock mounts with some modification.



We recommend the spherical RSMs for most users that see any competition use, such as autocross or track events. If the car is a daily driven vehicle only and/or the user is worried about bad roads and any additional NVH transmitted through a rear spherical mount, then choose to retain your OEM style mount.  The advantage to spherical RSMs is their ability to transmit reactions to shock forces instantly and direct - something that shows up on a shock dyno plot.

SIGNATURE DELIVERY : Orders over $2400 require signature delivery. Please plan on that when ordering.
