Ohlins Road & Track for R53 MINI [BMS Mi10S1]

Introduction

Vorshlag Motorsports is proud to offer the full line of Ohlins Road & Track Coilovers.  The Road & Track series of monotube dampers has the quality, technology, and performance we look for here at Vorshlag, we won't just sell any damper! Ohlins has been involved in racing for over 30 years and that knowledge and commitment to providing high-end damper solutions can be found in each of their products.

The Ohlins Road & Track kit is designed to offer a very high level of performance for both street driven vehicles, as well as offer the adjustability needed for track cars. These shocks are manually adjustable monotubes, with up to 20 individual settings to adjust rebound from comfort to competition. The threaded body allows accurate adjustability of the front and rear progressive springs to achieve the vehicle ride height center of gravity and level of performance handling desired. Ohlins Road & Track's can also be revalved, rebuilt, and can be supplied with various spring rates to meet your demands!  Ohlins puts every one of their products through vast corrosion test according to ISO 9227.  The end result is a 2-Year limited warranty on all of their products - worldwide.

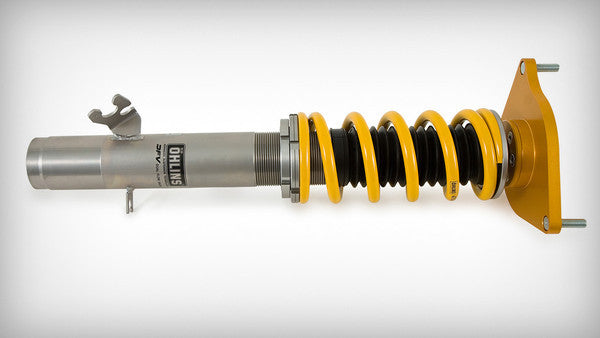

The kit with no options comes with everything shown above, and includes the fixed upper strut mount as shown. We highly suggest adding the optional Vorshlag adjustable camber plates for any sort of road course use, which gives ample front camber adjustment and saves tire wear on track.

Key Features

• Lowers the car about 15mm front and rear
• DFV (Dual Flow Valve)
• Monotube shocks and struts

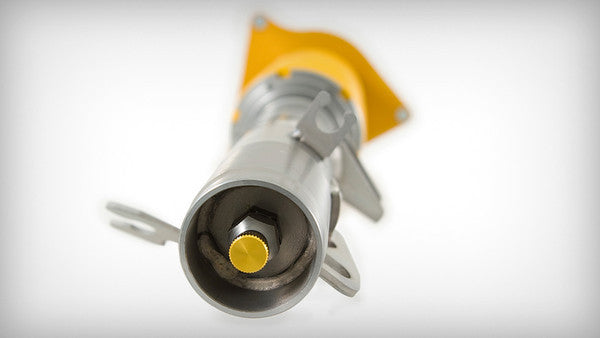

• Single Bleed Adjuster
• Front Spherical Top Mounts Included
• Reuse OEM rear shock mounts
• Threaded Body for Accurate Adjustability
• Front and Rear Springs (Front 60N/mm / Rear 50N/mm)
• Corrosion Salt Spray Tested (ISO 9227)

CAMBER PLATES : We highly recommend Vorshlag camber adjustable plates be used with Ohlins coilover, but the shocks can be used with the included "fixed" camber Ohlins spherical top mount (shown in gold). This is usually only done for street only cars on a budget. Virtually any racing class that allowed a coilover also allows for camber adjustable top

Easily adjust camber track side with Vorshlag camber/caster plates. Our over-sized spherical bearings are designed to withstand the rigors of street and track abuse. All components are plated for maximum corrosion resistance and long life.

Please see the product entries on this website for more information about the Vorshlag camber plates and perches. Ordering this option includes the associated Vorshlag upper spring perches made to work with these plates and this Ohlins kit.

SIGNATURE DELIVERY : Orders over $2400 require signature delivery. Please plan on that when ordering.
