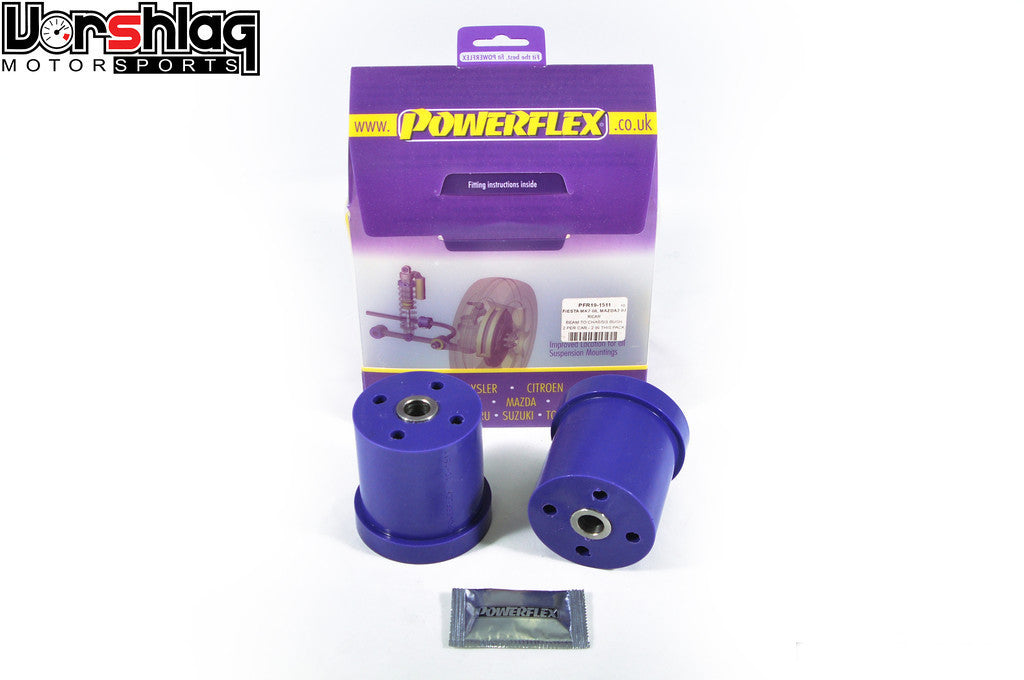

Vorshlag has teamed up with a leader in replacement polyurethane bushings, Powerflex. Powerflex polyurethane bushings are designed to decrease the amount of deflection in your car's suspension for better handling, driver feedback, and tire wear. Powerflex uses premium polyurethane materials for minimal NVH (noise, vibration, harshness) and increased longevity over the stock rubber bushings. The quality of Powerflex products can be seen the moment you open the box: premium polyurethane, detailed moldings, lube holding grooves and knurls, and 304 stainless sleeves. Each kit is supplied with a copper-based grease for extended squeak-free operation.
Powerflex bushings do not come in complete chassis kits. The bushings come la carte to fit each customer's needs. An automobile's bushings and mounts wear at different rates making "complete-kit" bushing sets unnecessary for many car owners. Replacing only the "weak links" in your car's suspension is a great way to tighten handling without stressing the budget. Bushings come in pre-determined durometers (measured hardness) engineered to reduce bushing deflection while keeping NVH to an absolute minimum. Some locations have an optional stiffer durometer material for an even higher level of performance and feedback. Please contact us for custom durometer applications.
Powerflex copper-based grease is supplied with every dynamic product. We suggest using only a copper-based grease for lubrication. Due to grooves and knurls cast into the material to hold the lubricant, bushings will rarely need re-lubing. We do not suggest using an "anti-seize" product for lubrication. All Powerflex bushings are made in the UK and come with a 1 year, unlimited mile warranty.
Notes:
-
MINI Models Covered:
- 02-06 Cooper (R50)
- 04-08 Convertible Cooper/Cooper S (R52)
- 02-06 Cooper S (R53)
- PFR5-1102 is fitted on 5/'03+ models. MINIs with production date before 5/'03 use the PFR-110 bushing
- PFF5-101MS is a optional support if using PFF5-101 for motorsport/high-performance applications
- PFF5-104 & PFF5-105 Upper Engine Support Bracket bushes will not fit models 2004 onwards if using oil filled engine mounts
Part Numbers:
-
1 - PFF5-101 x2 - Mini R53 - Front Wishbone Rear Bushing
-
1 - PFF5-101MS x2 - Mini R53 - Motorsport Reinforcement for PFF5-101 *See Notes
-
2 - PFF5-102-225 x2 - Mini R53 - Front Anti Roll Bar Bushing(22.5mm)
-
2 - PFF5-102-24 x2 - Mini R53 - Front Anti Roll Bar Bushing(24mm)
-
3 - PFF5-103 x1 - Mini R53 - Steering Rack Mount
-
4 - PFF5-104 x1 - Mini R53 - Upper Engine Support Bracket Small *See Notes
-
5 - PFF5-105 x1 - Mini R53 - Upper Engine Support Bracket Large *See Notes
- 6 - PFF5-104 x1 - Mini R53 - Lower Engine Support Bracket Small
-
7 - PFF5-107 x1- Mini R53 - Lower Engine Support Bracket Large
-
8 - PFF5-108 x1 - Mini R53 - Gearbox Mounting Bushing
-
9 - PFF5-109 x8 - Mini R53 - Rear Control Arm Bushing
-
10 - PFR5-110 x2 - Mini R53 - Rear Trailing Arm Front Support Insert *See Notes
-
10 - PFR5-1102 x2 - Mini R53 - Rear Trailing Arm Front Support Insert *See Notes
-
11 - PFR5-111-16 x2 - Mini R53 - Rear Anti Roll Bar Bushing(16mm)
- 11 - PFR5-111-17 x2- Mini R53 - Rear Anti Roll Bar Bushing(17mm)
-
12 - PFF5-211 x2 - Mini R53 - Super Charger Belt Damper Bushing Set
