BMW E36 LSx Swap

Vorshlag E36 T56 Transmission Crossmember Kit


Please Note: These LS1 swap parts are made in batches, and can sometimes take weeks to fulfill orders. We prefer to take these orders over the phone, so we can then only charge you for parts as they ship. If you order here, online, your credit card is charged immediately. If you have any questions about ETAs on any parts please call us at 972-422-7170.

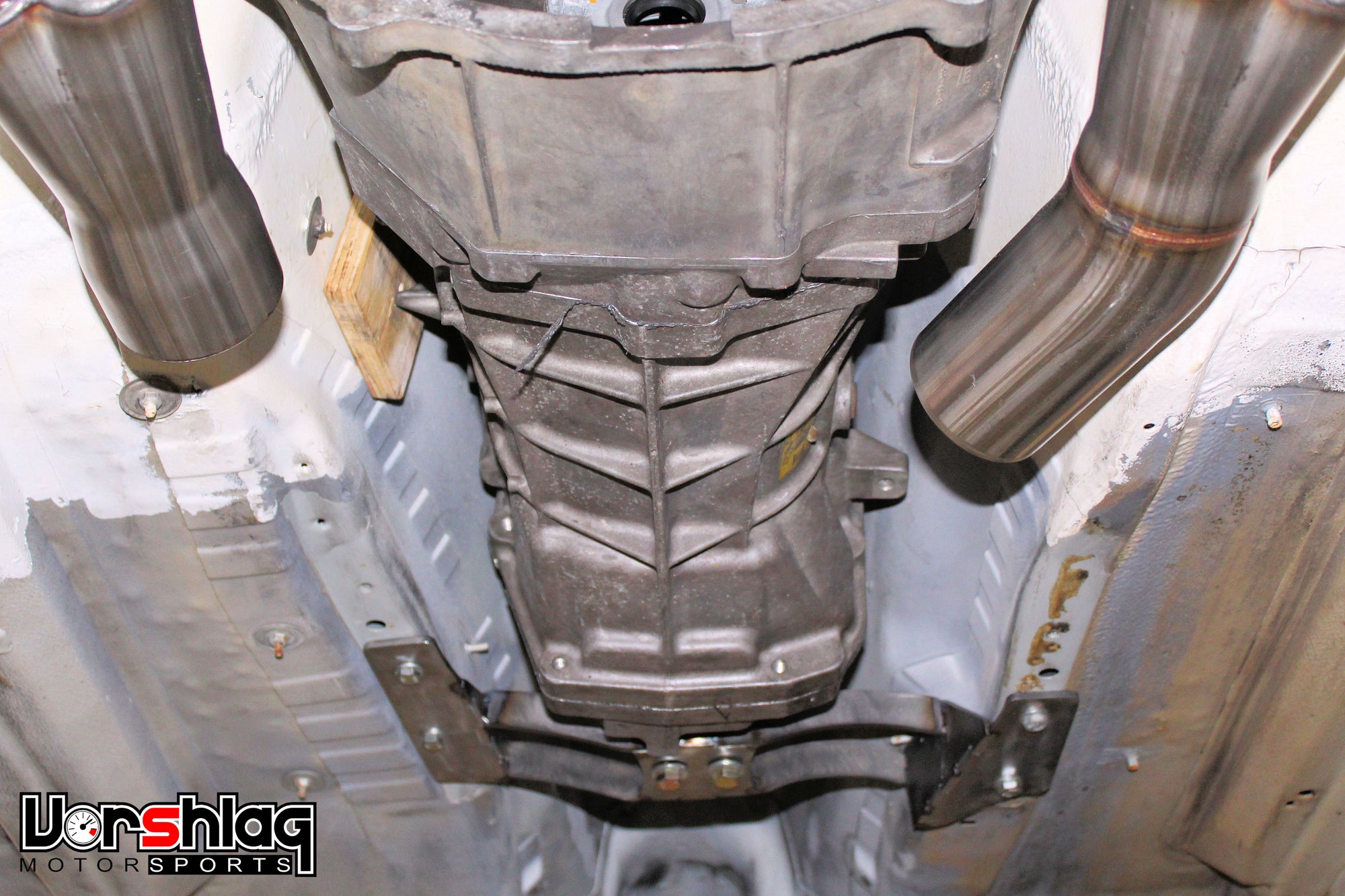

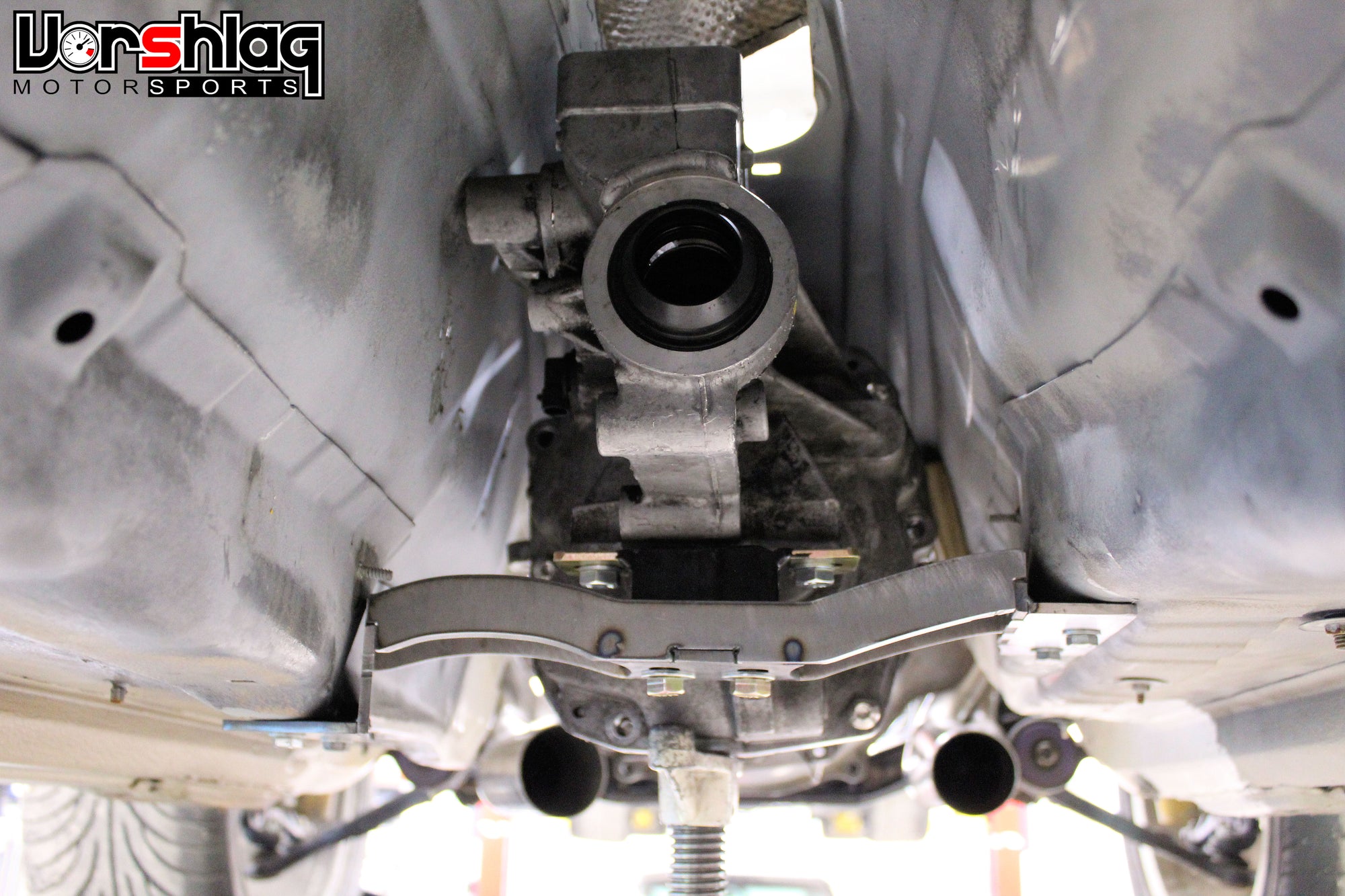

This cart entry is for the complete transmission crossmember assembly built in-house by Vorshlag Motorsports. This is made to be used with 6 speed Tremec (T56, T56 Magnum or T56 Magnum F) manual transmission behind an LS1 V8 in an Left Hand Drive E36 chassis. This is sold outright as well as in our Stage 0 E36 LS1 swap kit.

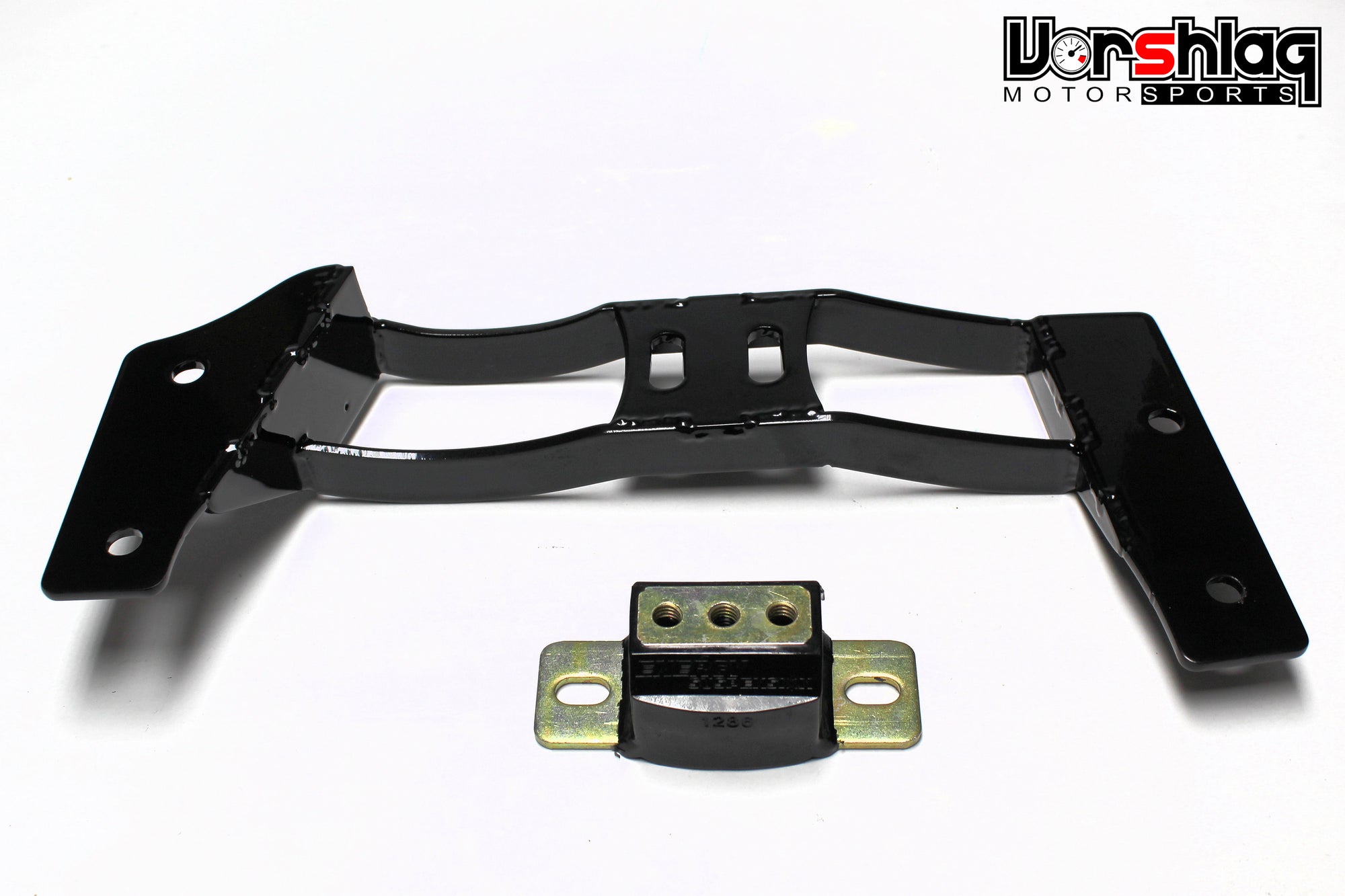

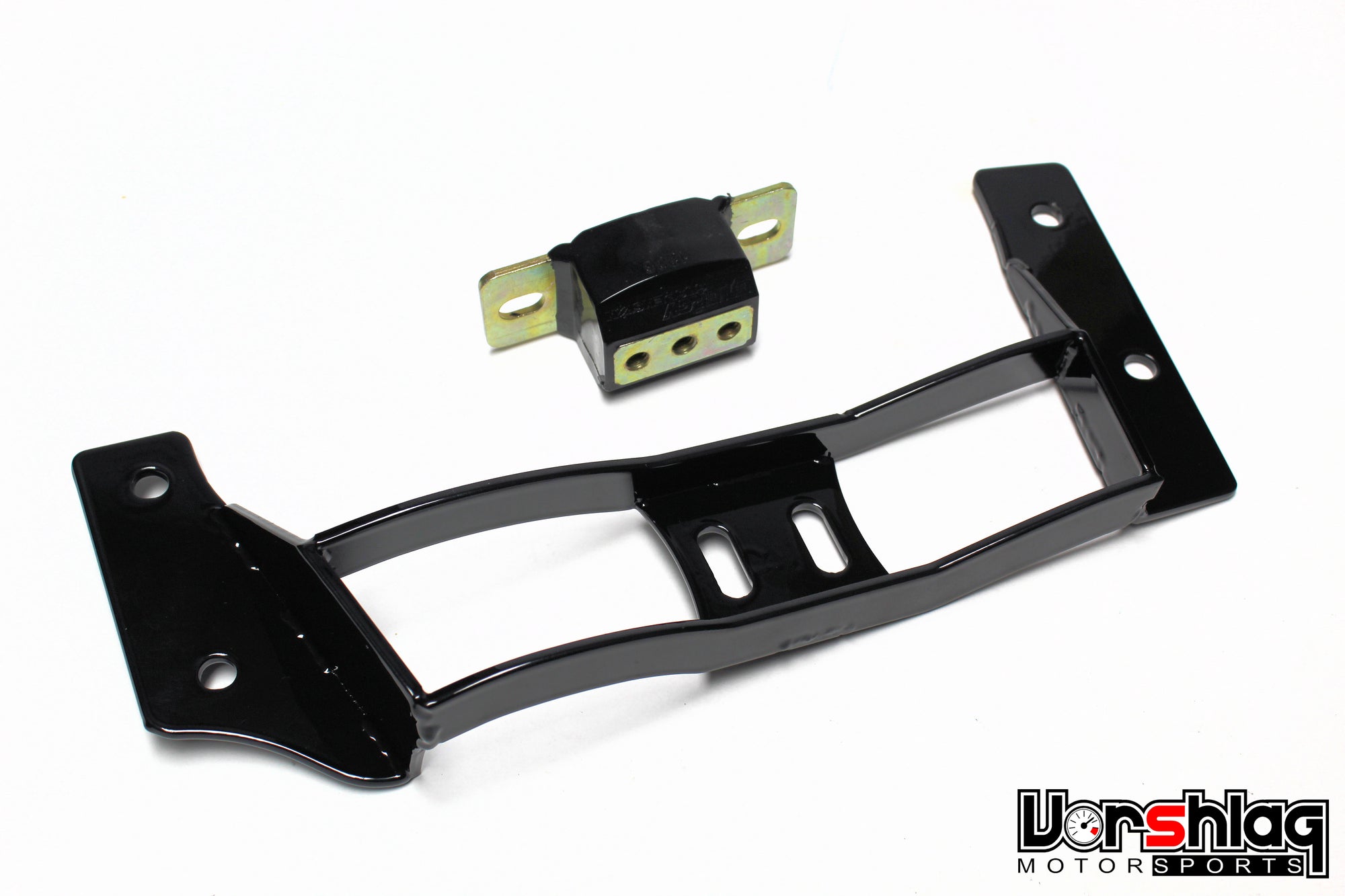

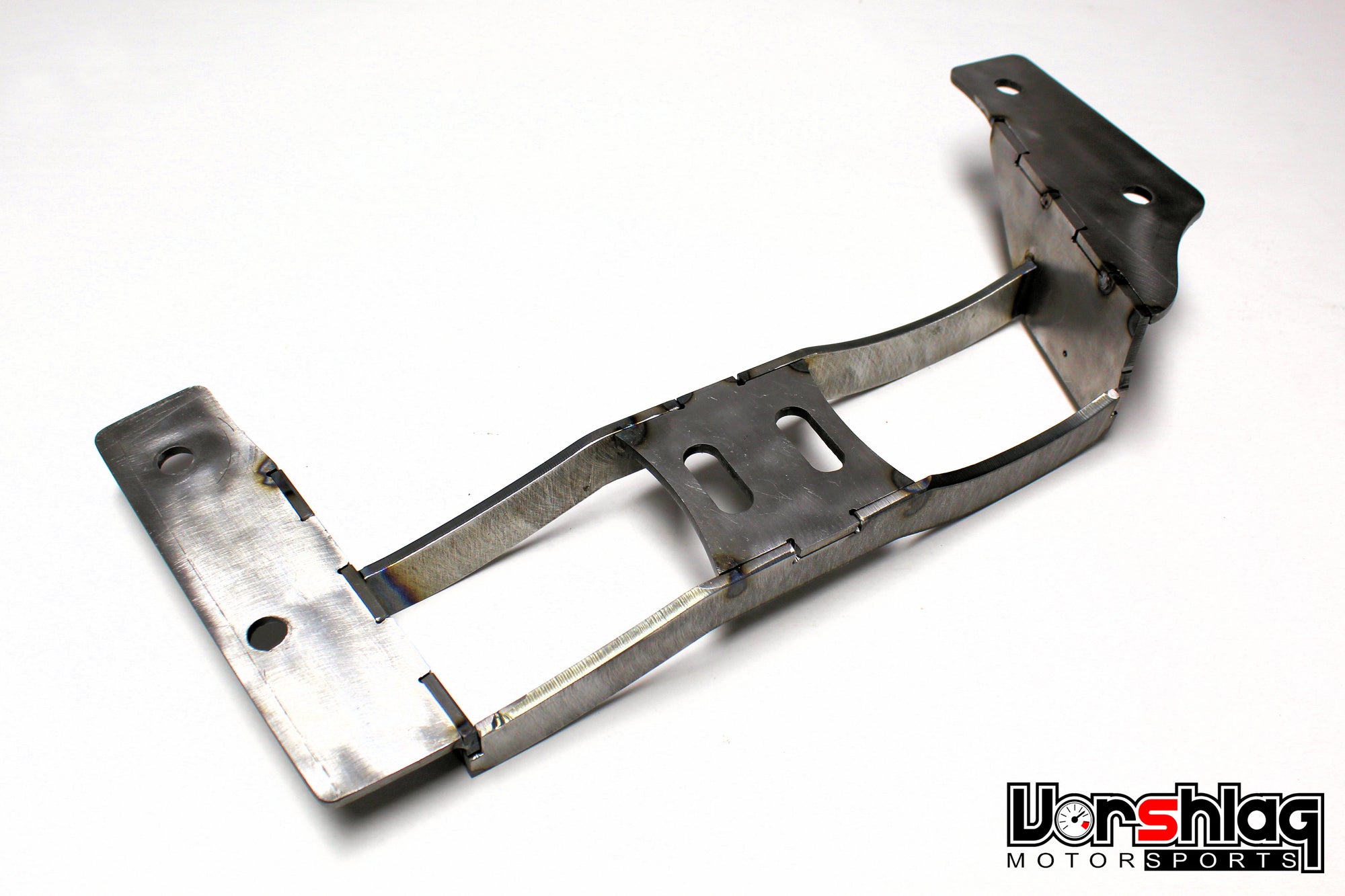

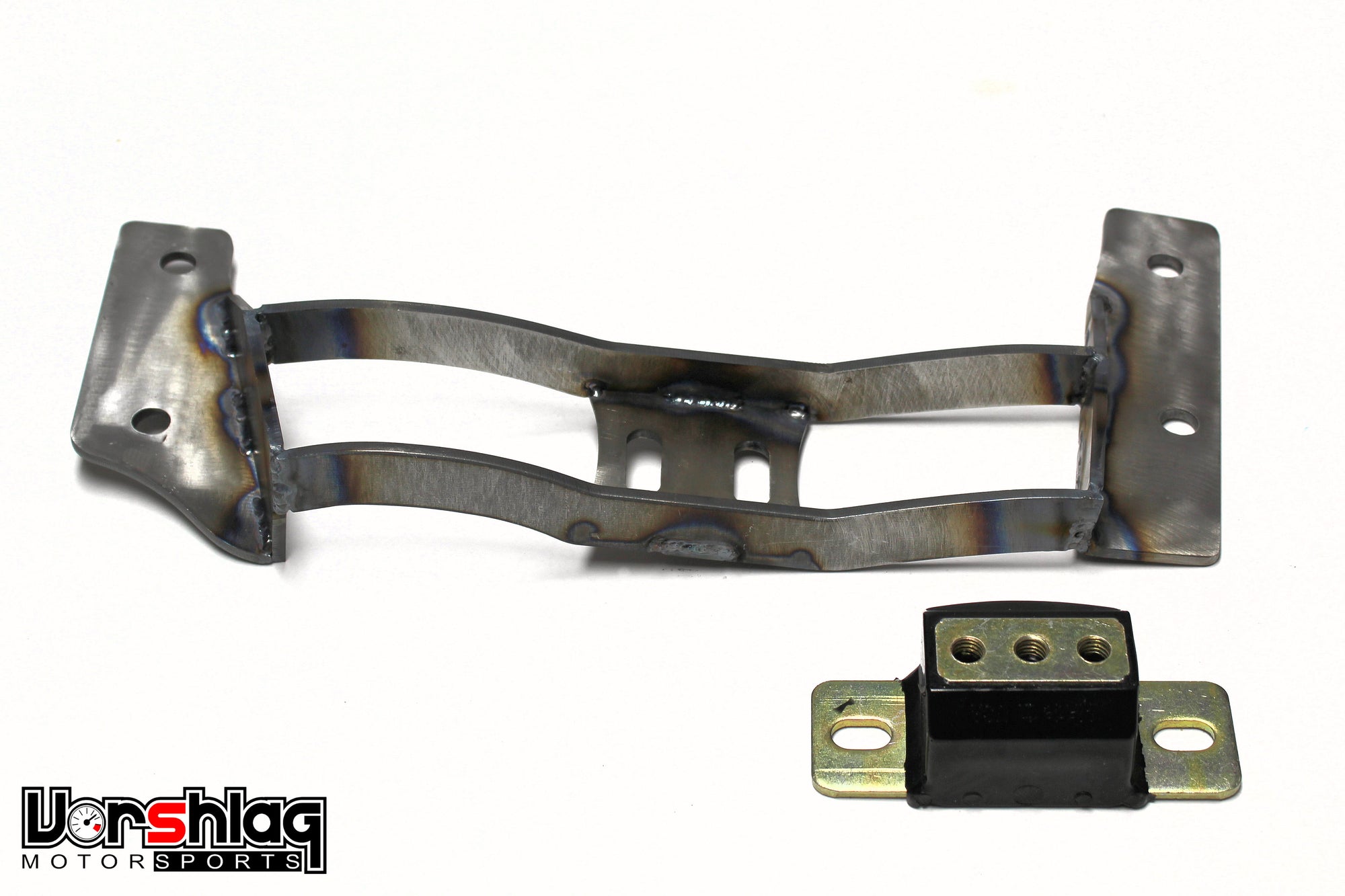

This entry includes the fabricated transmission crossmember and polyurethane bushing. All alloy steel construction, powder coated black, with CNC flanges throughout. TIG welded construction and precise fit-up using our production welding fixture for repeatability and production accuracy. We recommend using this Transmission Crossmember Kit with our E36 LS1 Motor Mount Kit for the ideal engine and transmission placement and driveline angles.

Includes:

  • Transmission crossmember for Tremec T56 or T56 Magnum to be used in a LHD BMW E36 chassis

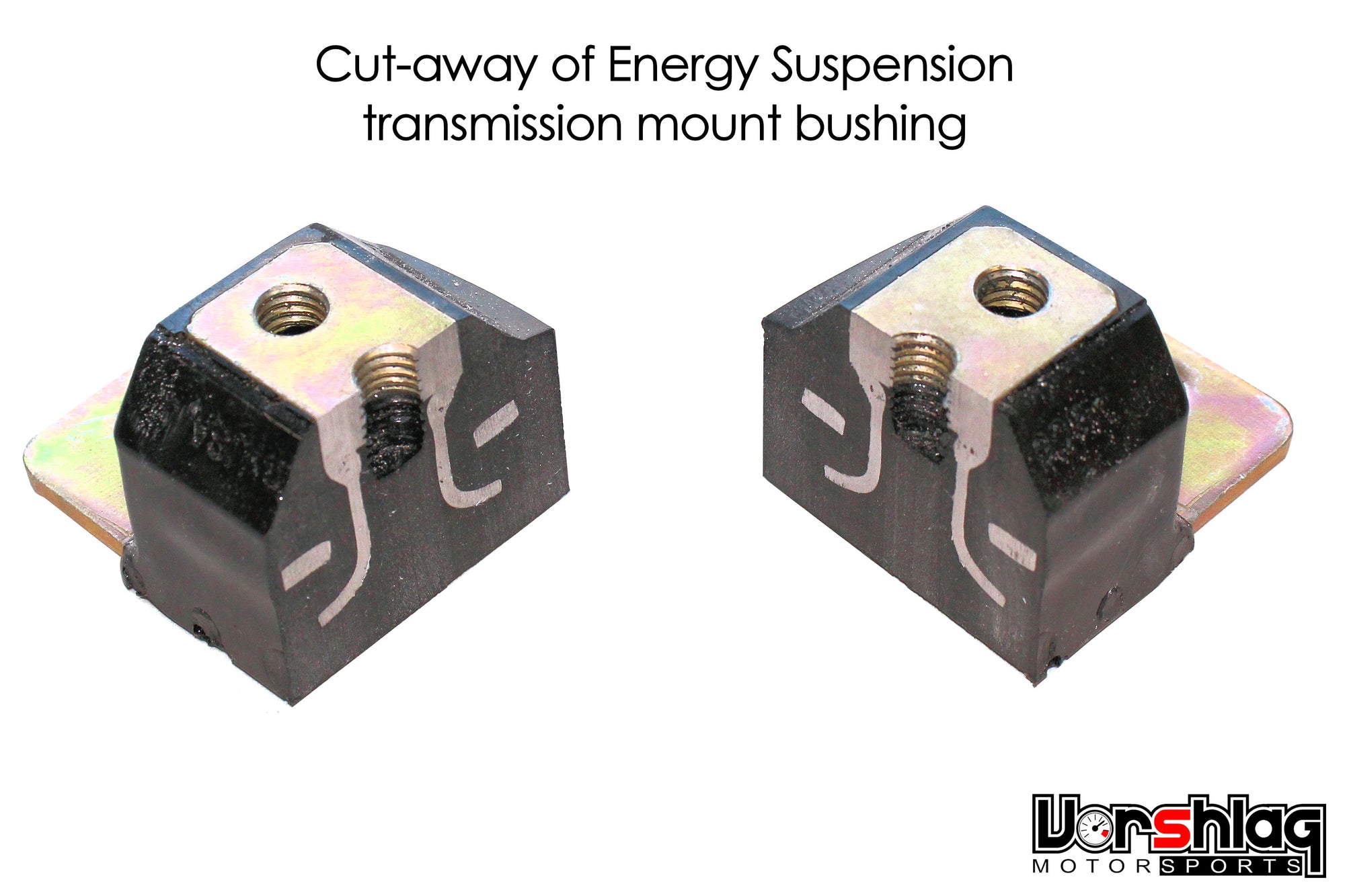

  • Includes captive polyurethane Energy Suspension transmission mount bushing
  • Updated design completely in 2020 to this new construction style and improved bushing for lower NVH. Mounts the T56 transmission is exactly the same location as our 2007 version.


NOTES: This crossmember fits the mounting holes in a 1998-2002 Camaro T56 or the aftermarket Tremec T56 Magnum or T56 Magnum F - not anything else. Not an automatic, not a 5th gen Camaro TR6060, not some random other box - just the two 6 speed manual transmissions we listed. The E36 LS1 engine mounts, headers, and steering shaft are not included in this entry. This is a 5 pound shipment, with all packing materials and box included.
